Where standard excavators reach their limits, our work begins. With decades of experience in custom excavator manufacturing, we modify operator cabs to meet the highest demands. Our lift cabs, tilt cabs, and lift-tilt cabs are the perfect choice for demolition and material handling. They provide the operator with optimal visibility on the job – whether it’s a clear view upward to the demolition edge or perfect sight down into a scrap container. Robust, safe, and precisely tailored to your excavator model.

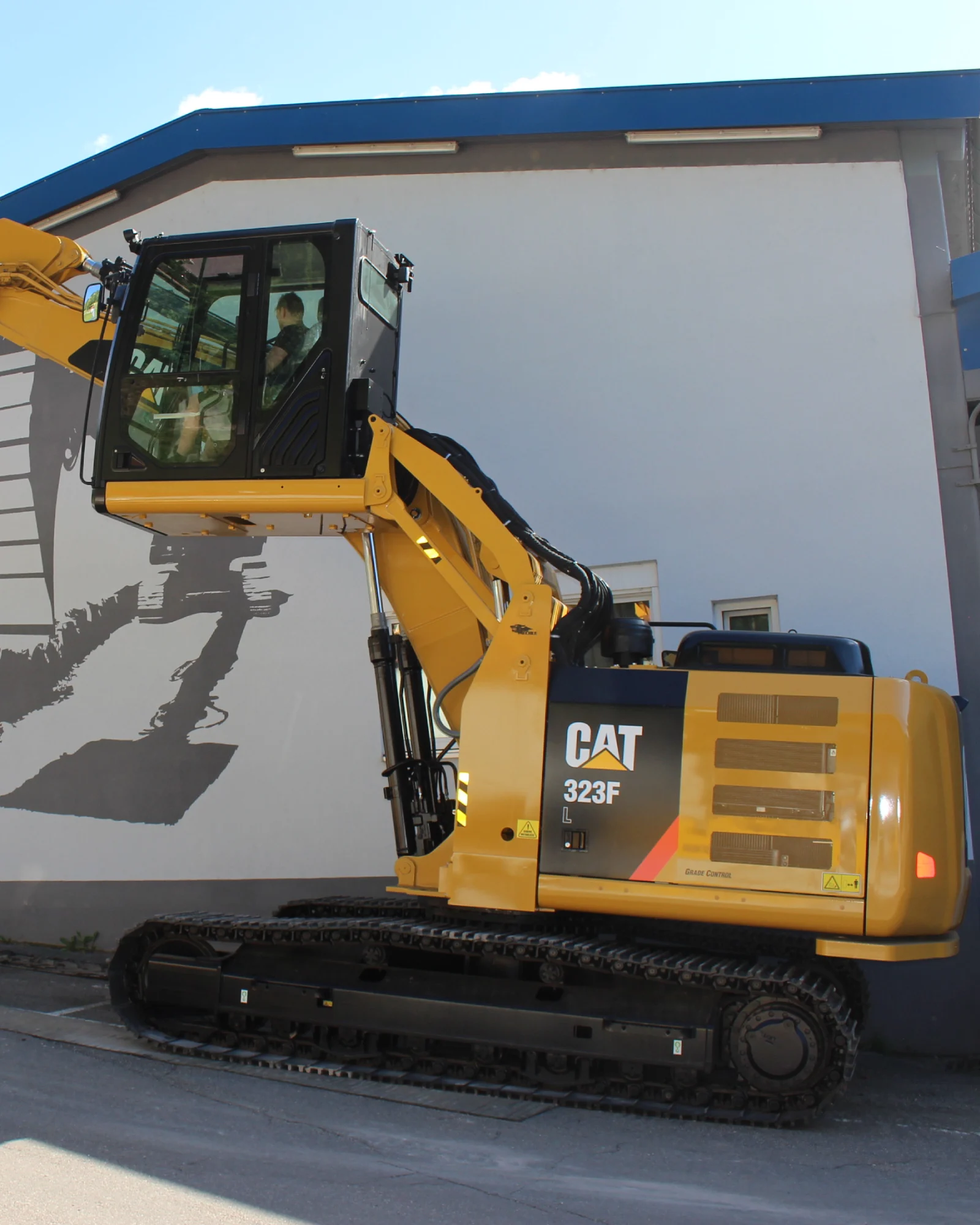

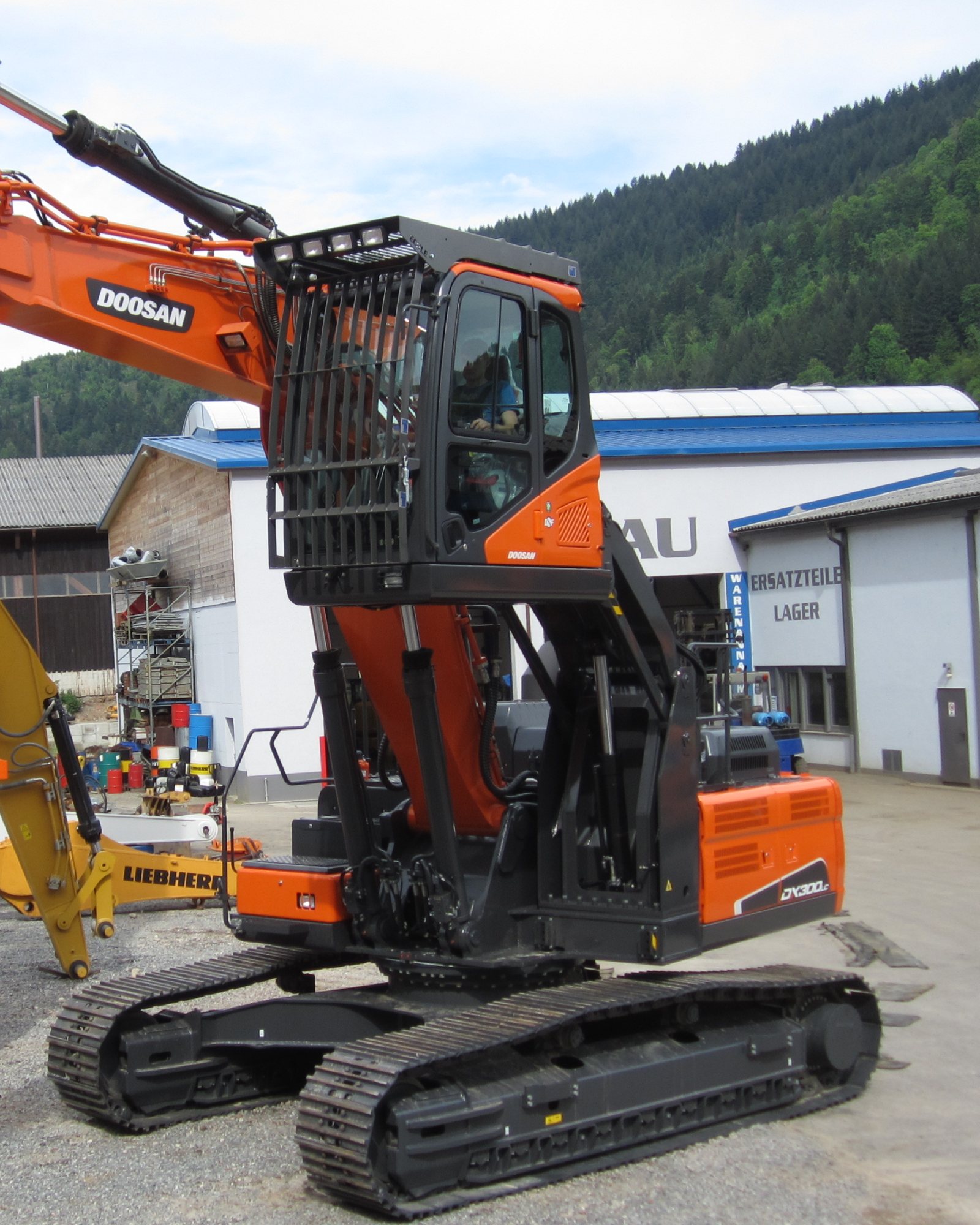

• Ergonomics and Comfort:

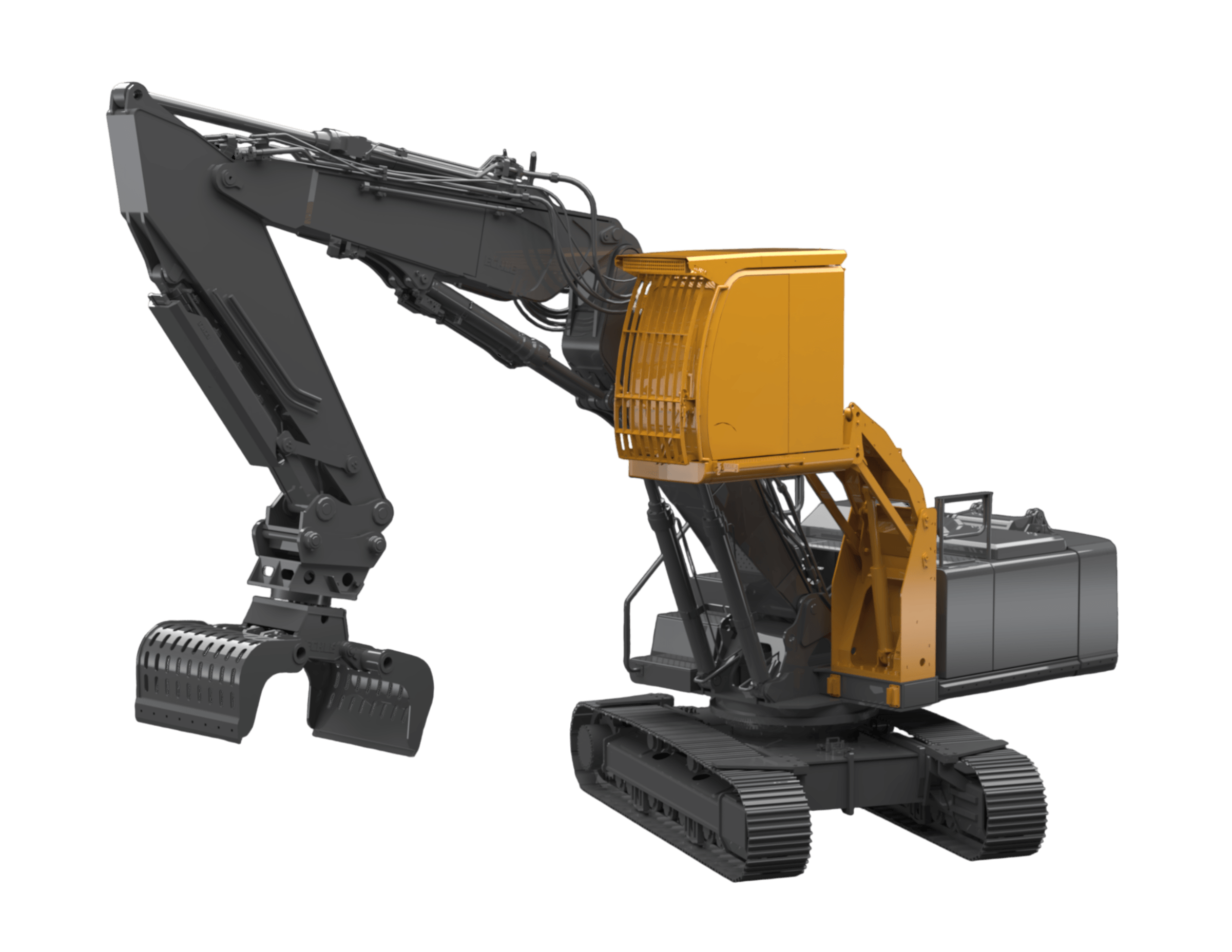

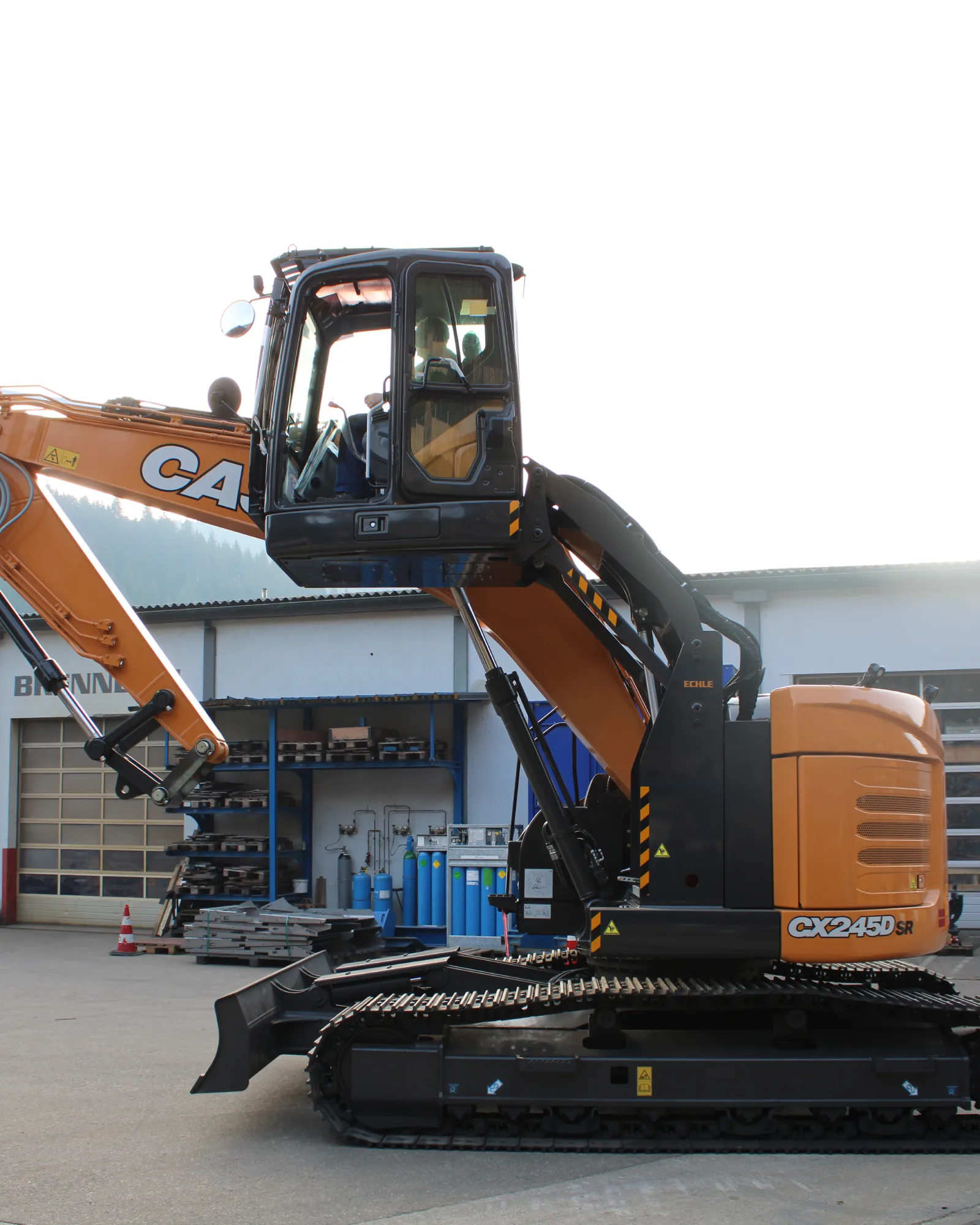

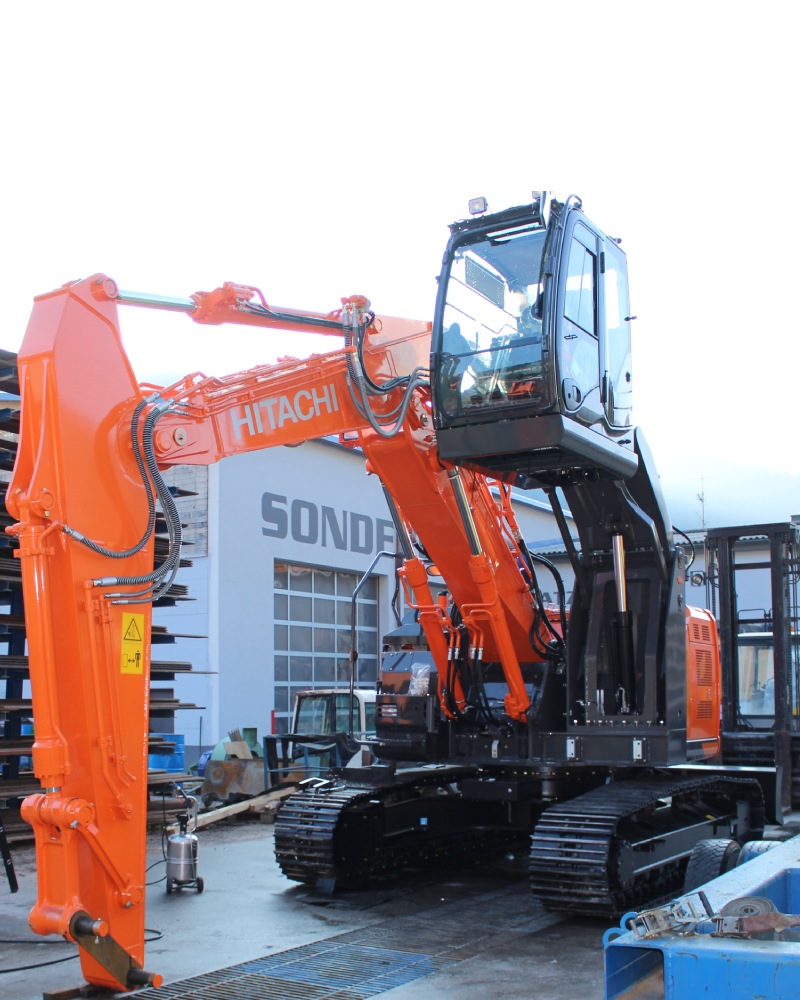

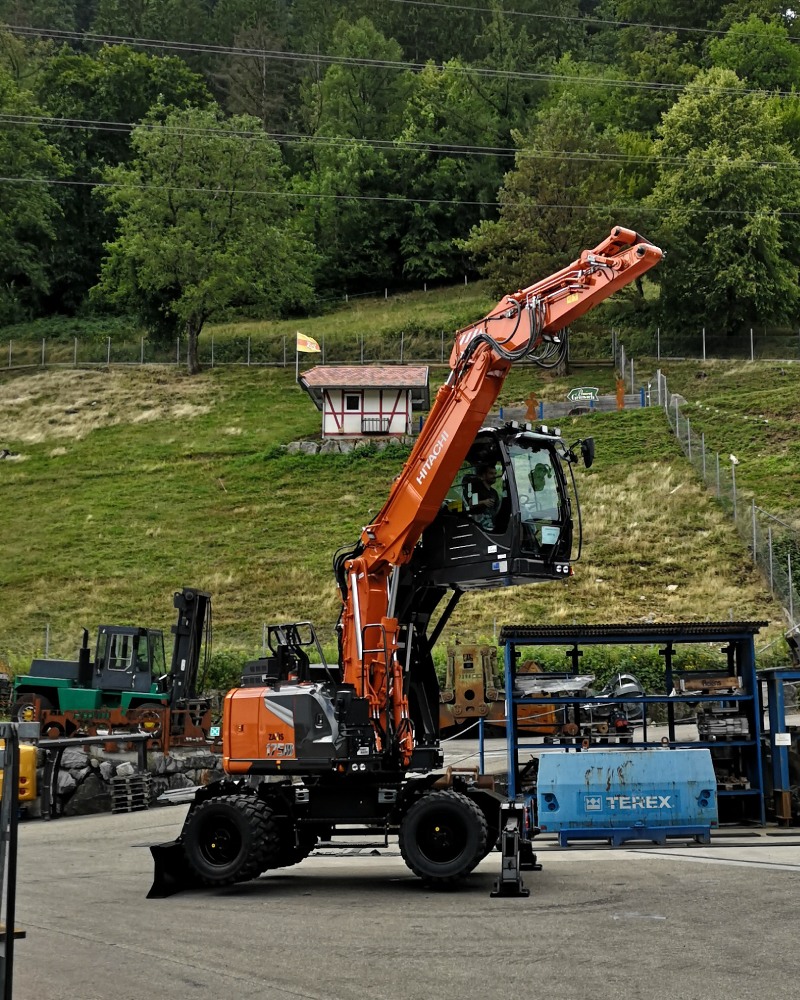

  The lift cab allows for comfortable height adjustment and ensures an ergonomic seating position.
• Stepless Height Adjustment:
  The cab can be continuously raised to a lift height of approx. 2,300 mm. Lifting is handled by a powerful hydraulic cylinder equipped with a load-holding valve.
• Optimized Visibility and Cab Positioning:
  Due to the modification, the cab is shifted forward by approx. 700 mm. This improves visibility of the working area and creates additional space.
• Robust Lift Design with Parallel Kinematics:
  The lift frame is connected to the excavator chassis via parallel kinematics, ensuring stable and safe movement of the cab across the entire lifting range.
• Simple Control System:
  Operation is controlled via the medium-pressure circuit. No additional control elements are required.
• Integrated Emergency Lowering:
  For maximum safety, an emergency lowering system is integrated, which can be triggered from both inside the cab and from the ground.
• All relevant lines and hoses are professionally adapted and extended.
• Highly compatible with our “PROTECTOR E4” guard.
• Corrosion Protection and High-Quality Finish:
  All components are blasted, primed, and painted – ensuring long-lasting protection and a premium appearance.

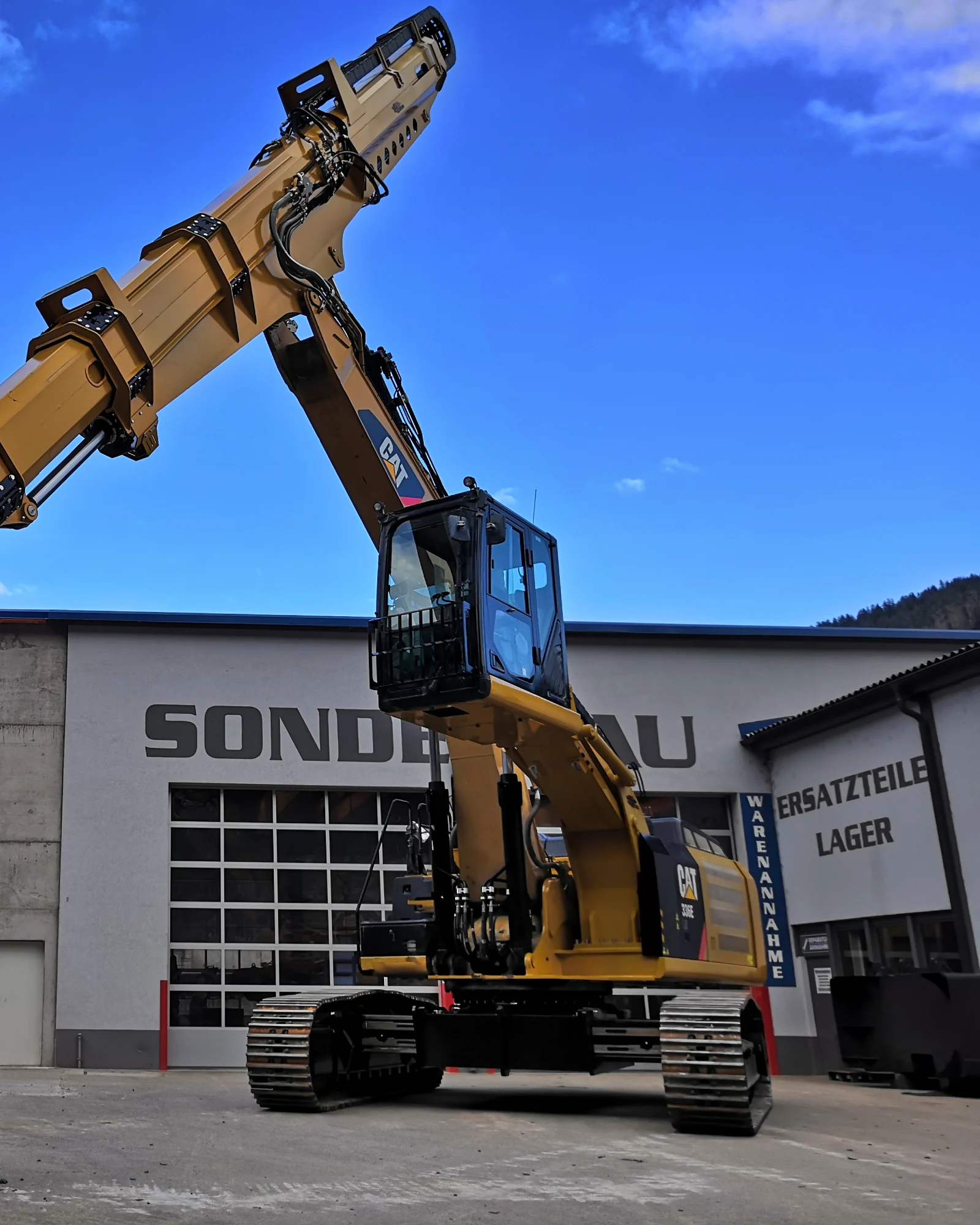

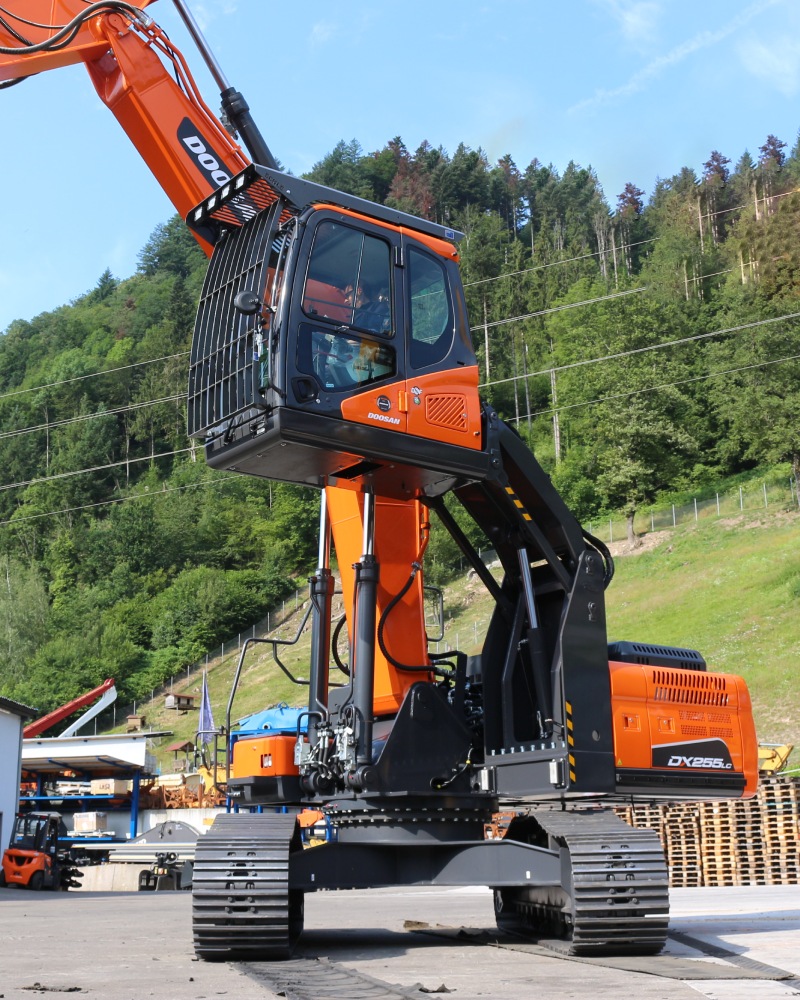

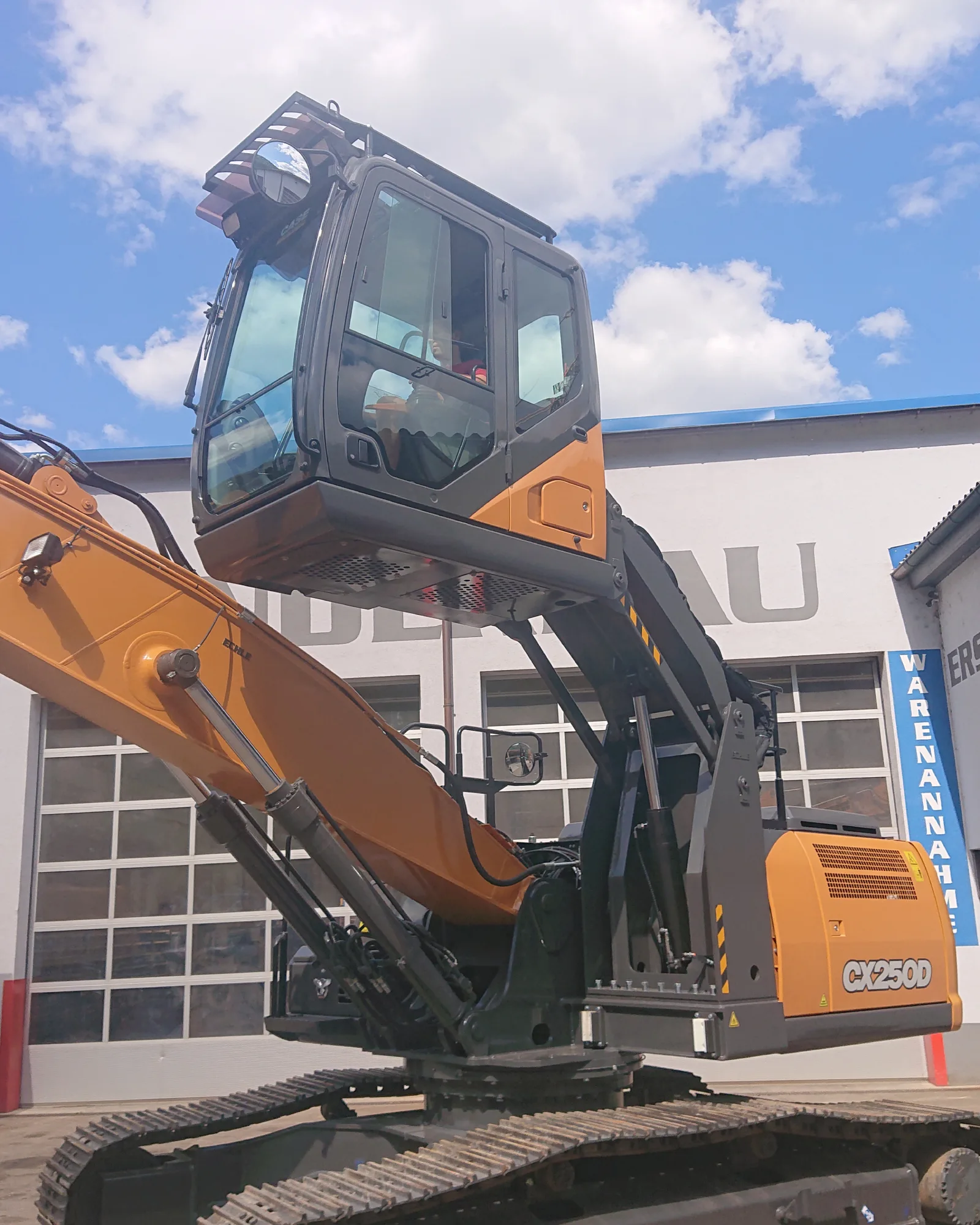

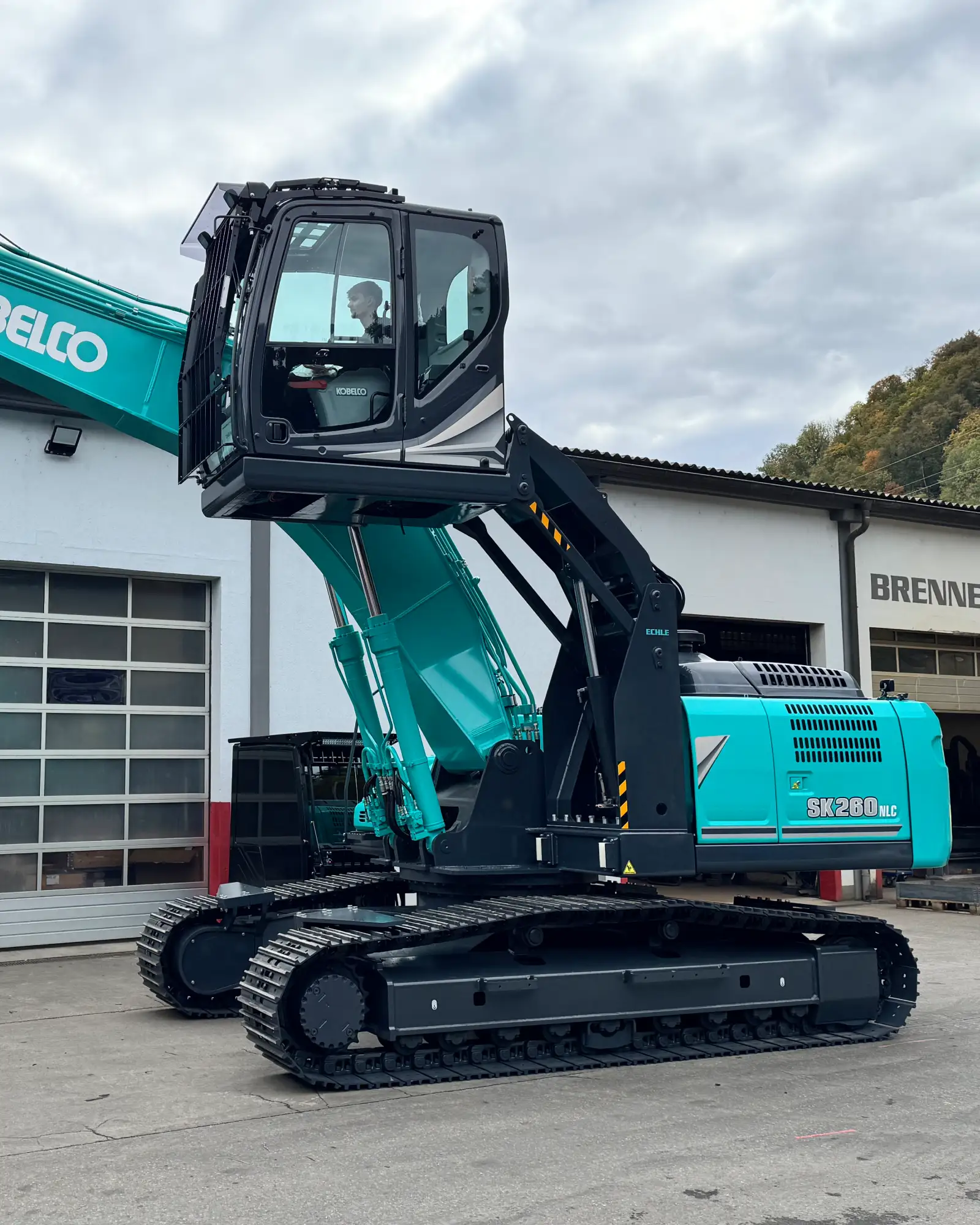

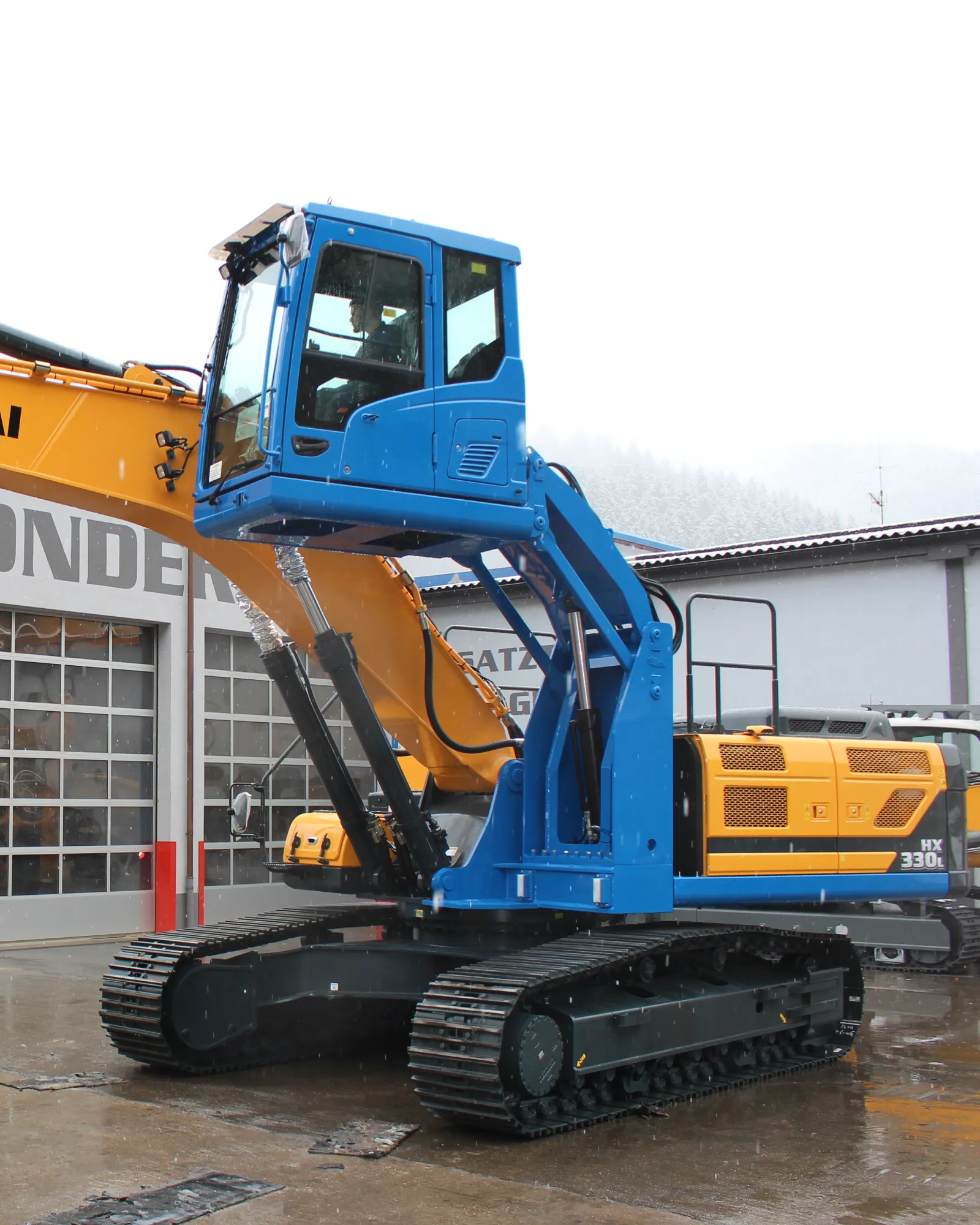

Decades of experience in action: Our lift cab references

Discover the custom modifications we have successfully delivered for our customers:

Experience our lift cabs in action and production

Our videos show functional testing and the lifting process of the ECHLE lift cab on various excavator models.

But quality work starts long before that: Take a look behind the scenes! In an exclusive video, we take you inside our manufacturing plant in Wolfach and show you firsthand how we engineer and build a custom lift cab. That is “Made in Germany” quality – from the very first weld.

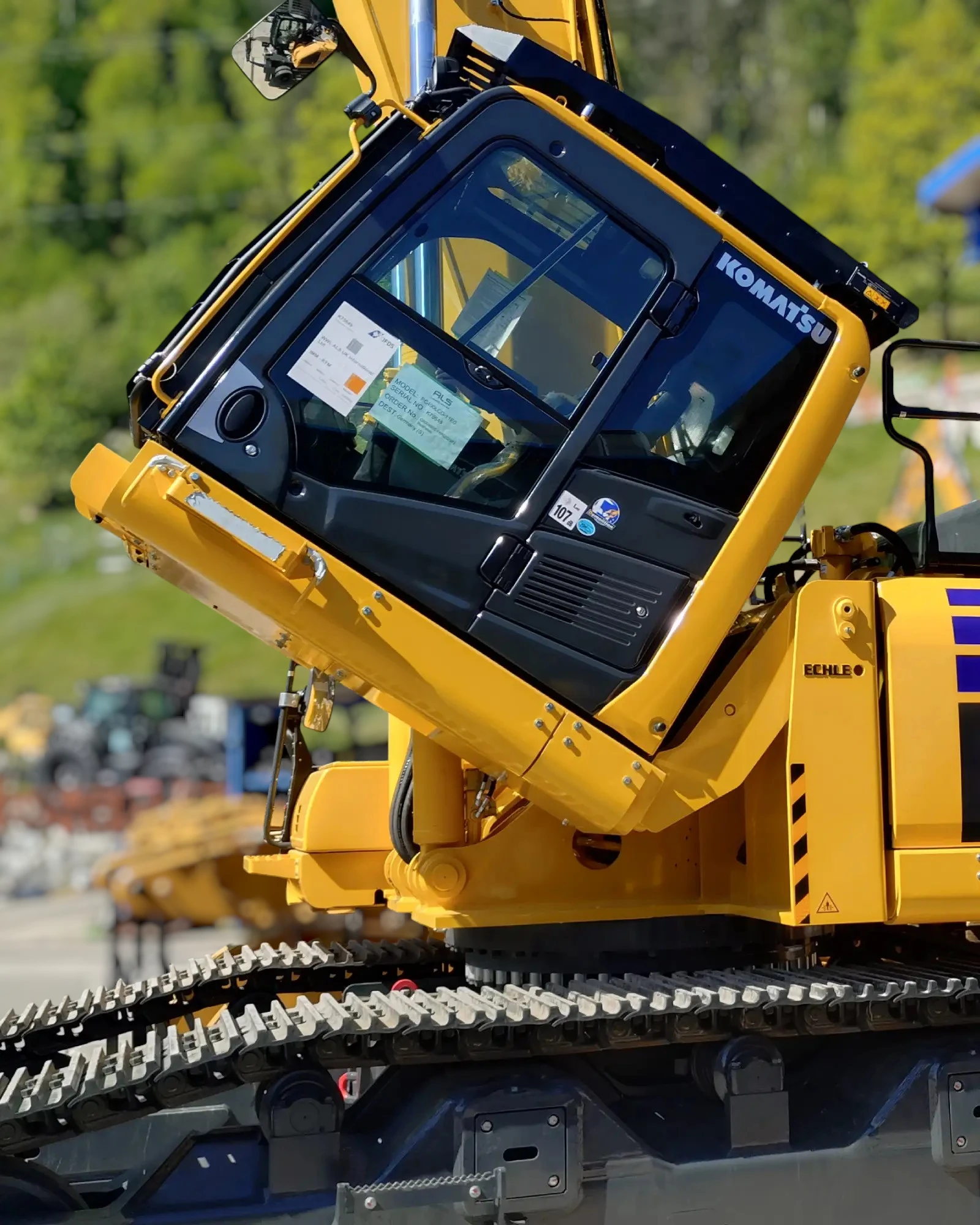

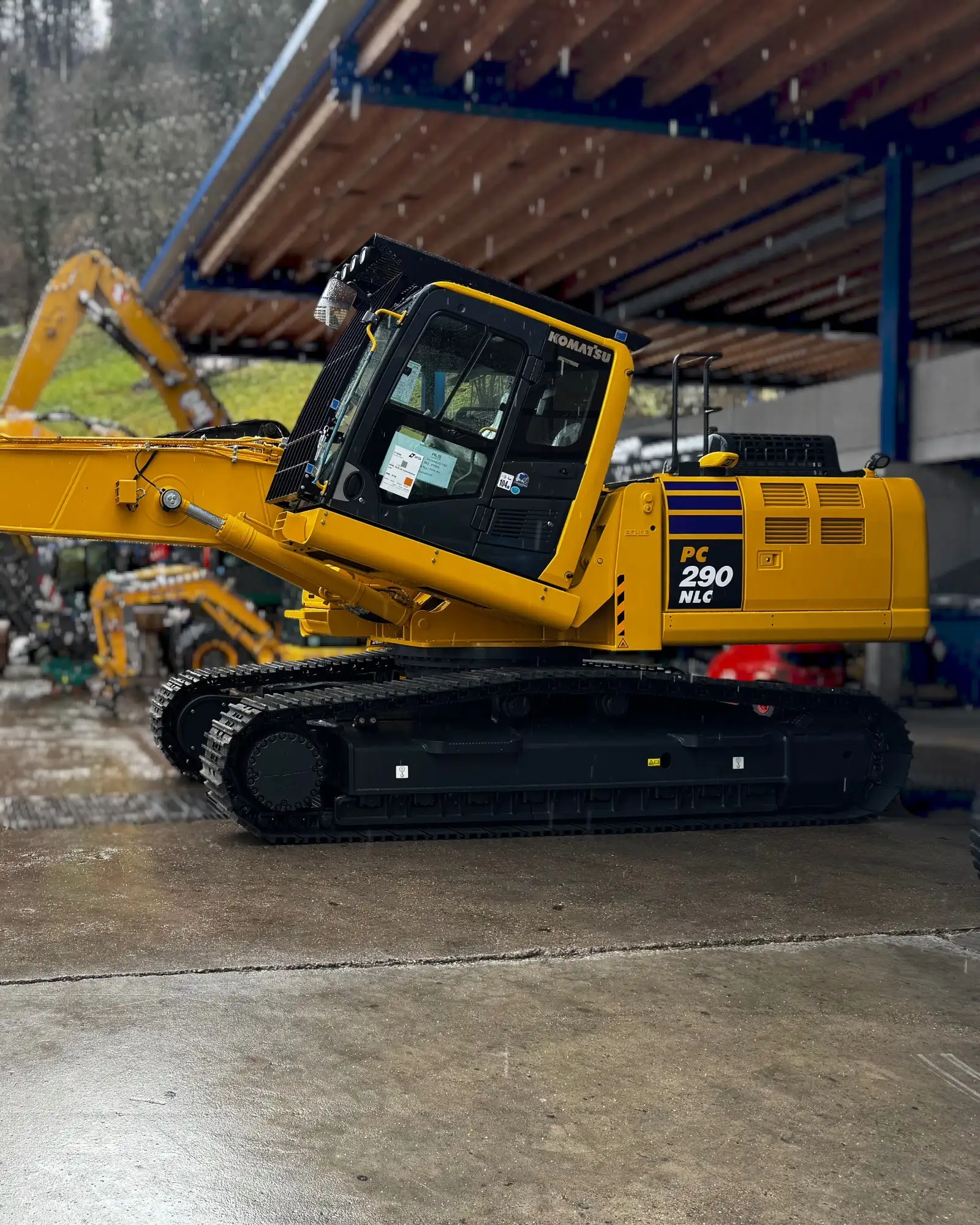

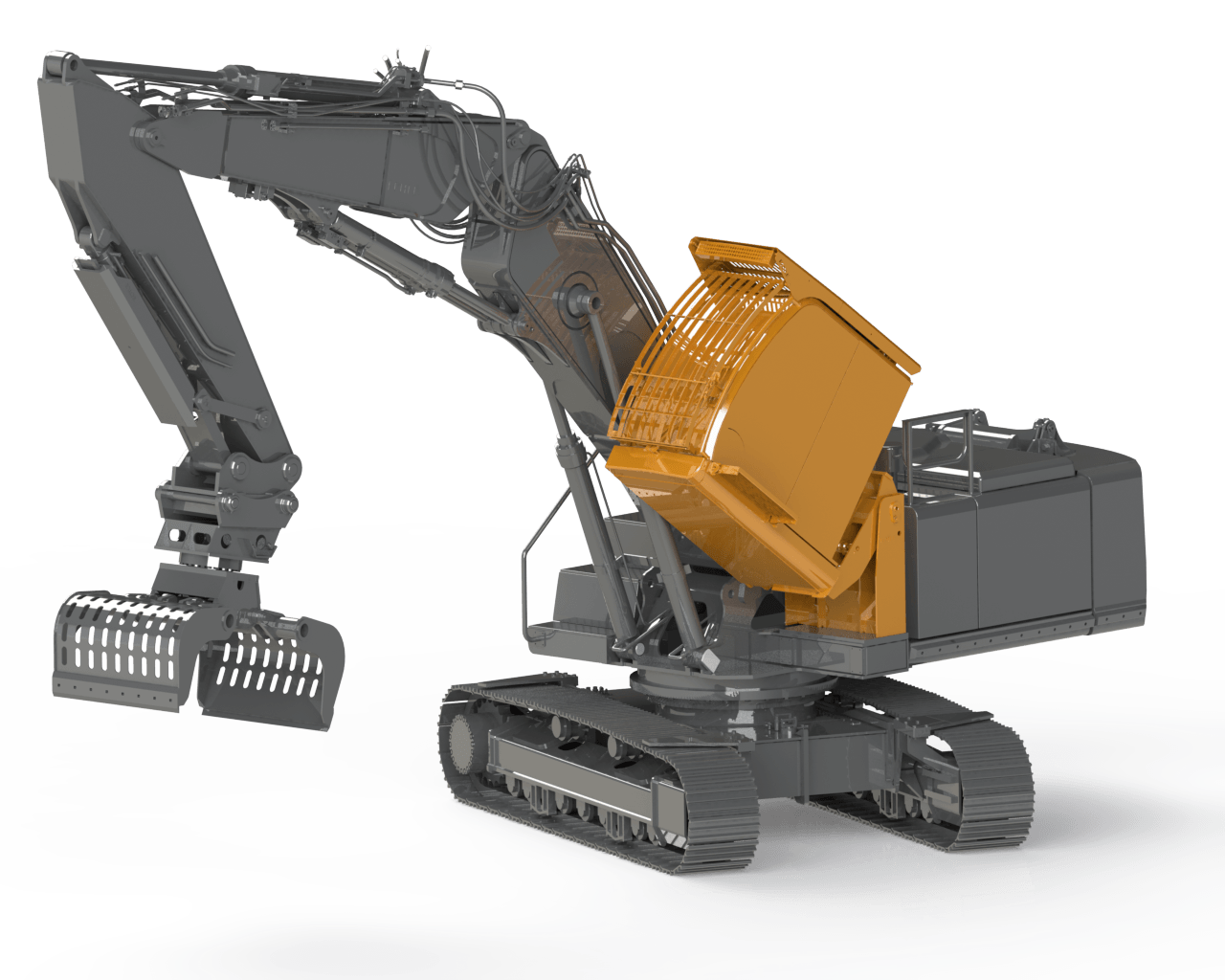

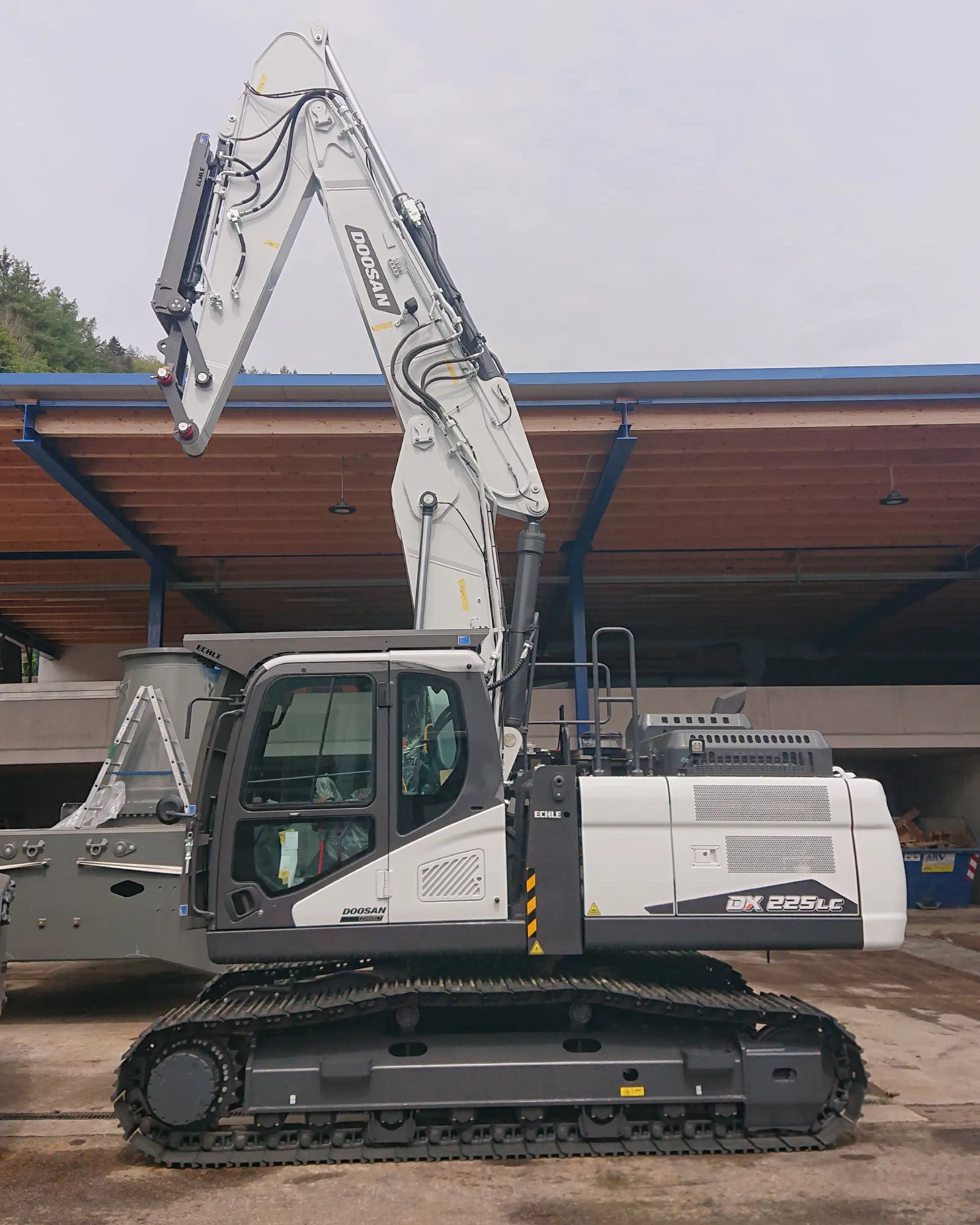

• Ergonomics and Comfort:

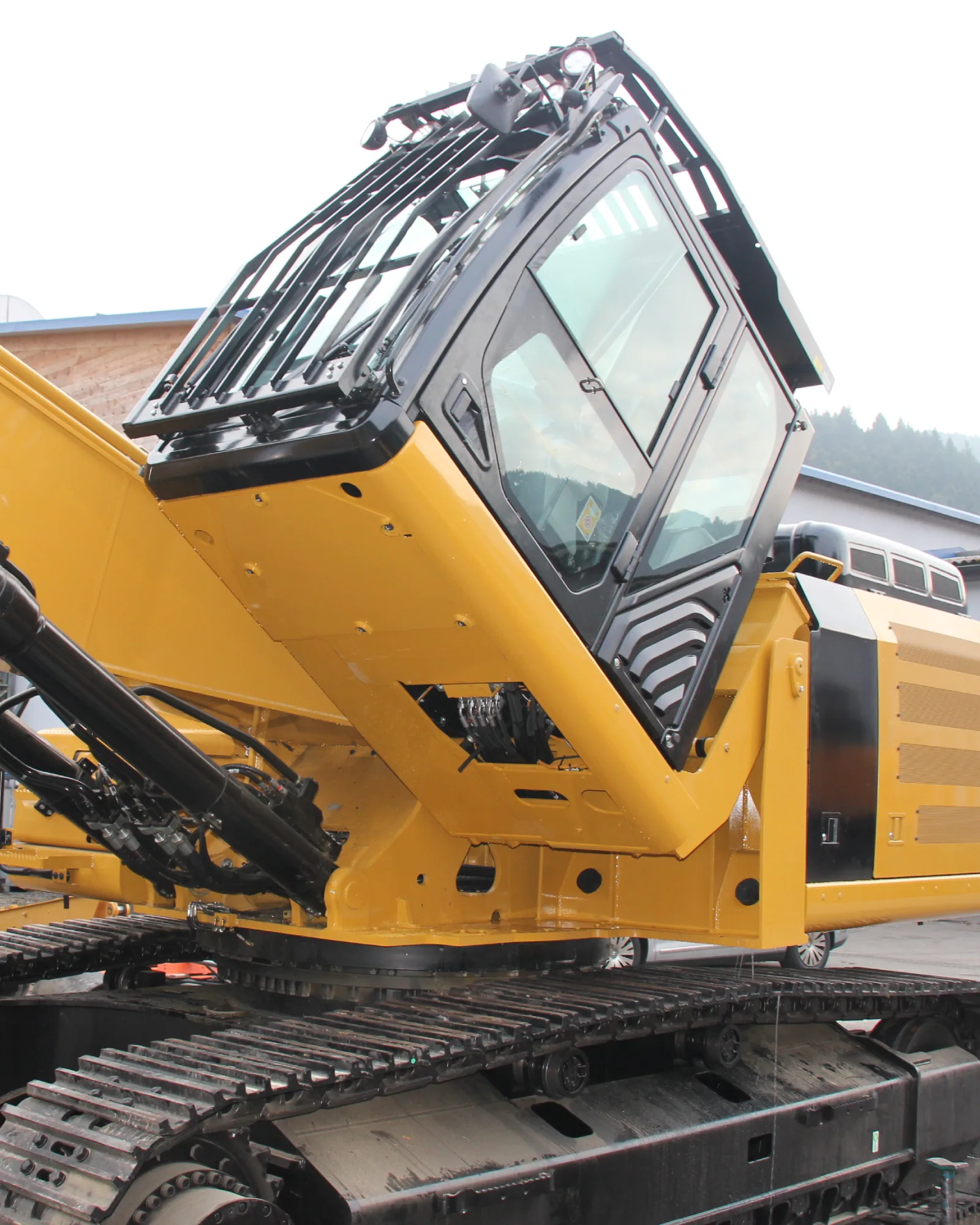

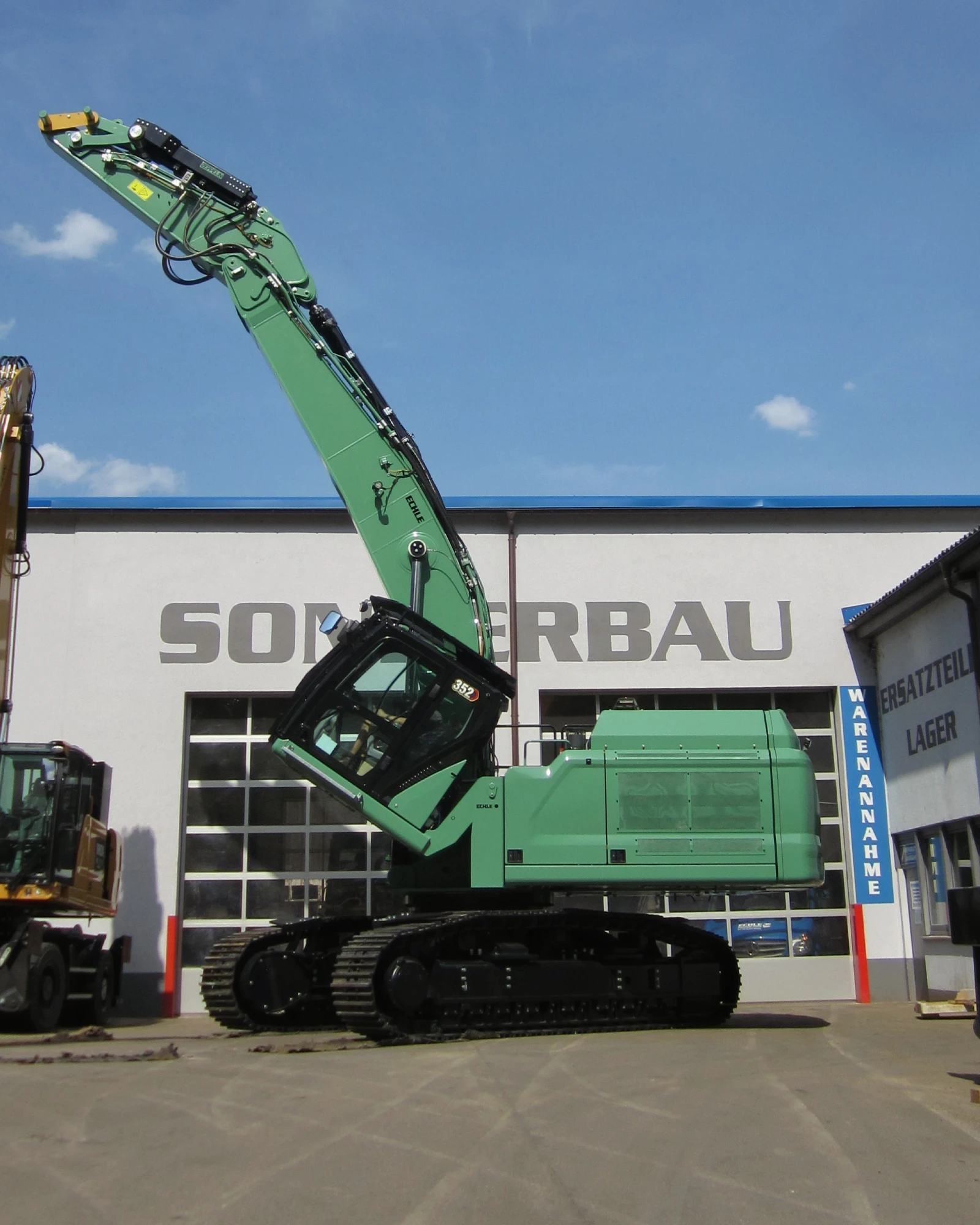

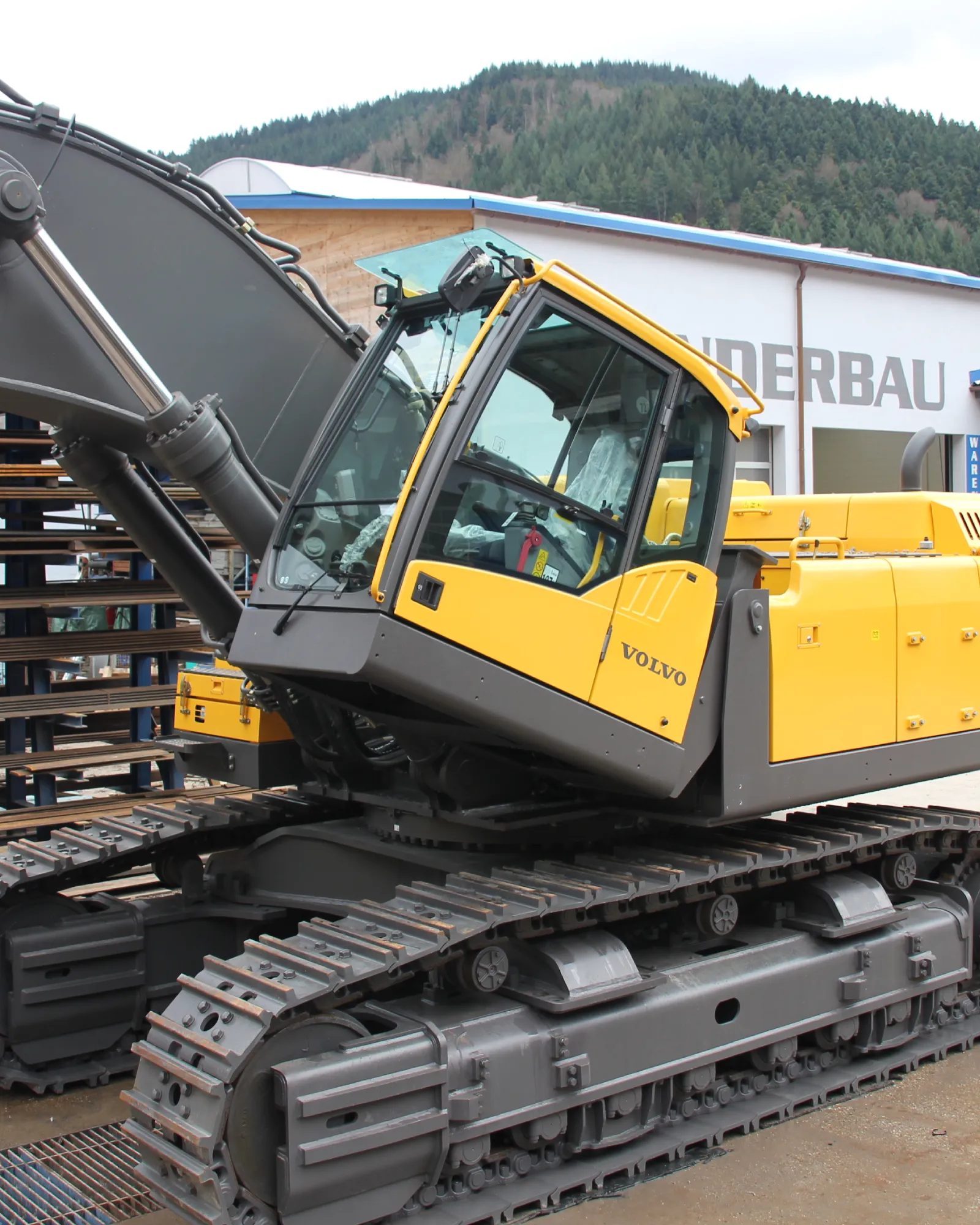

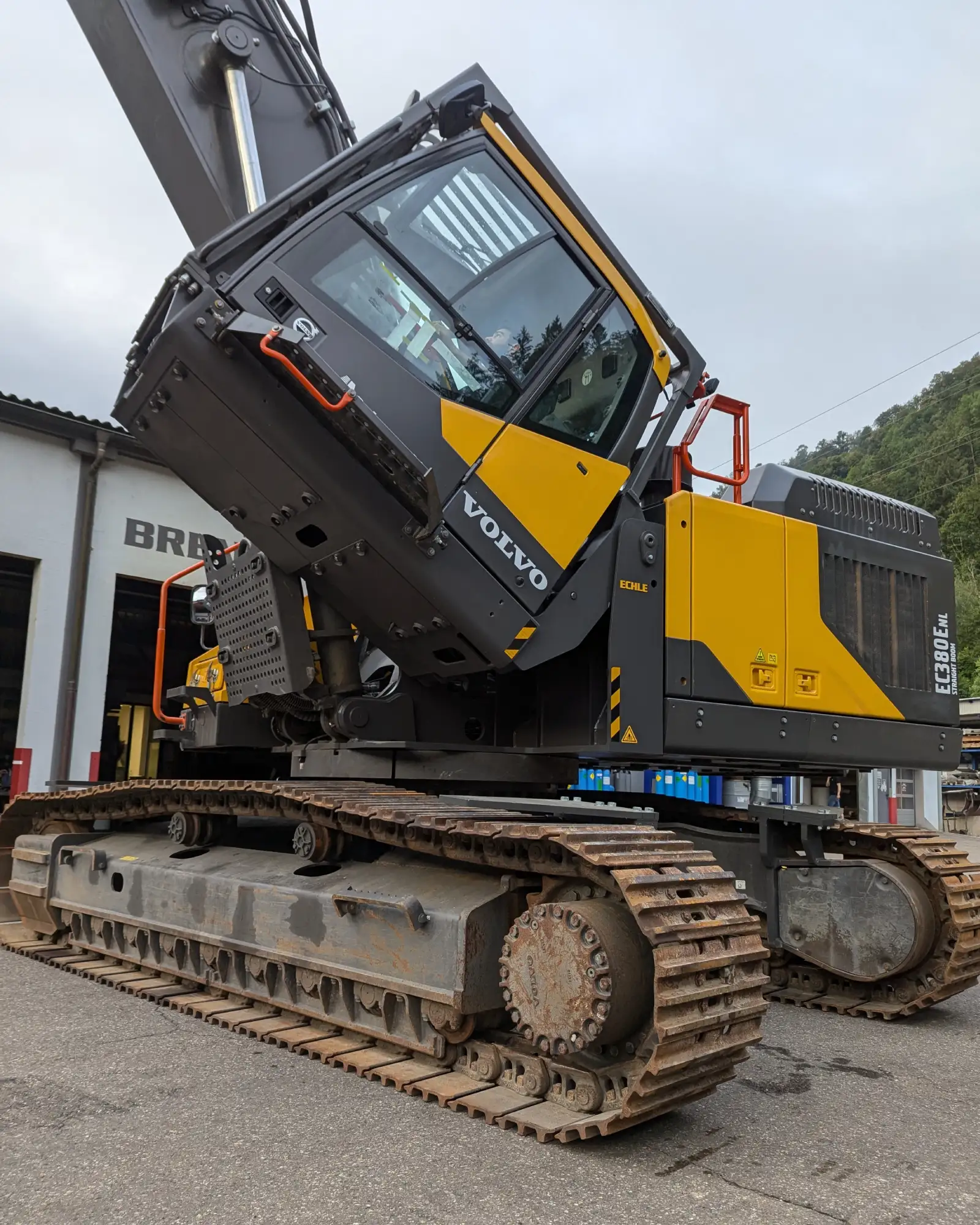

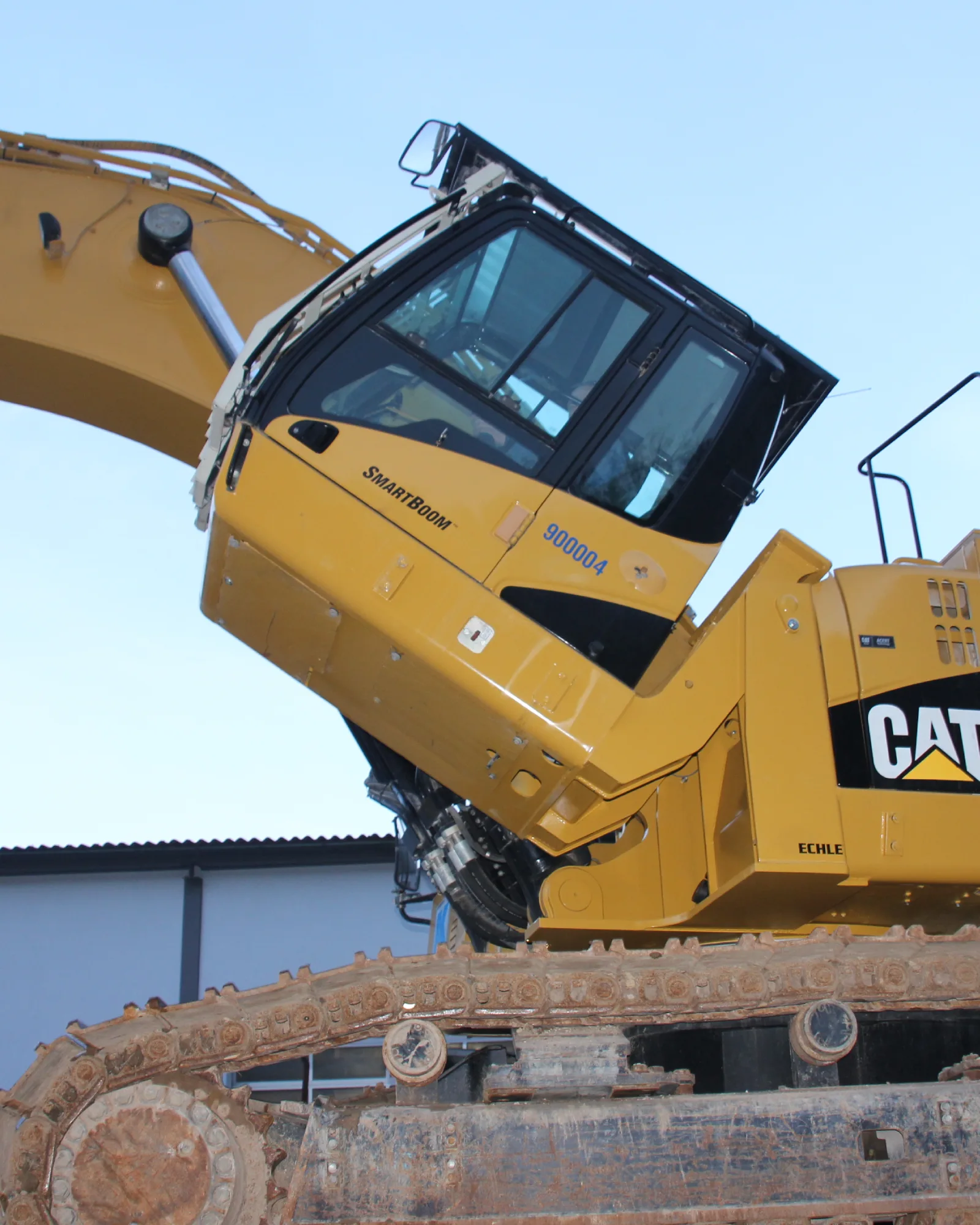

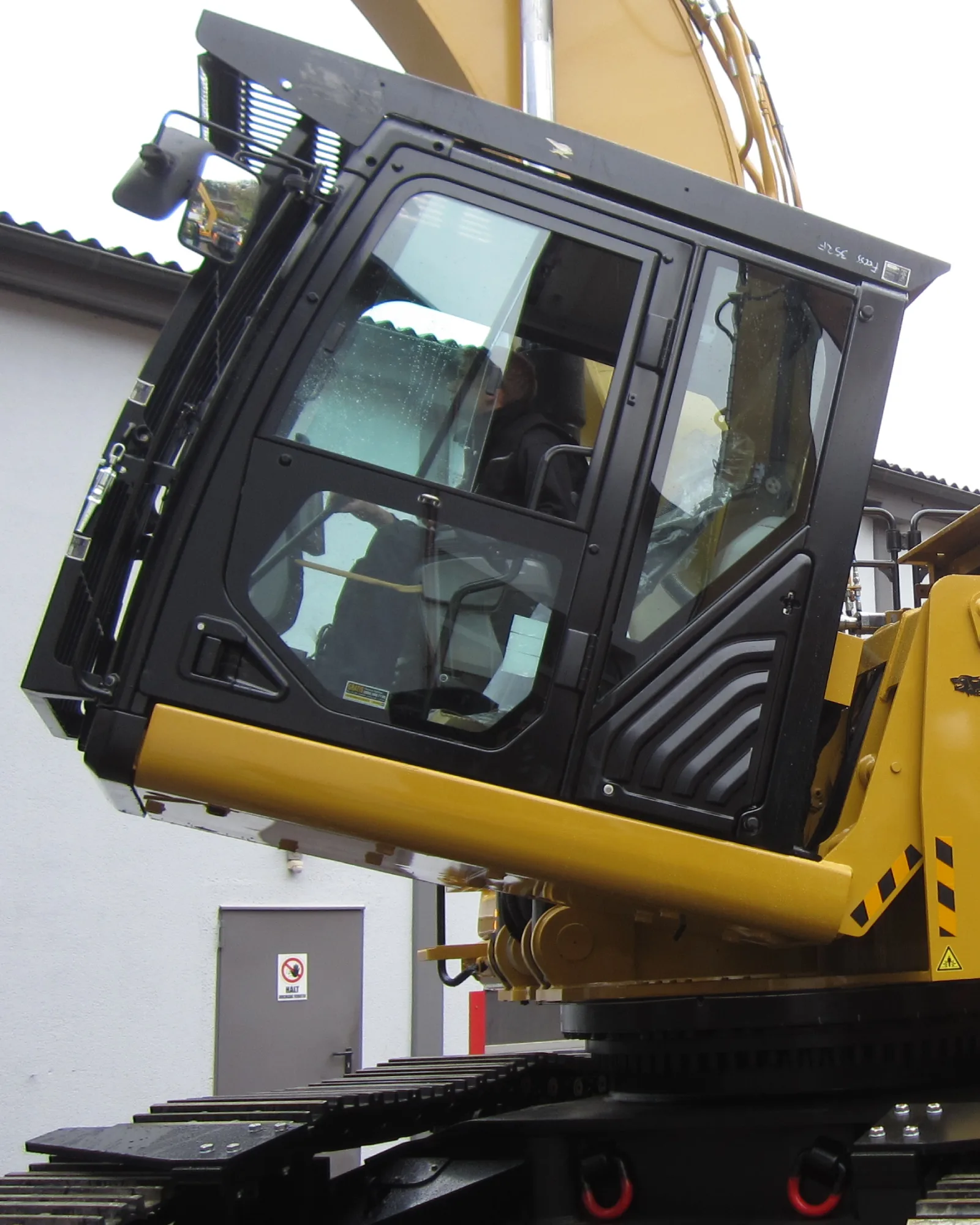

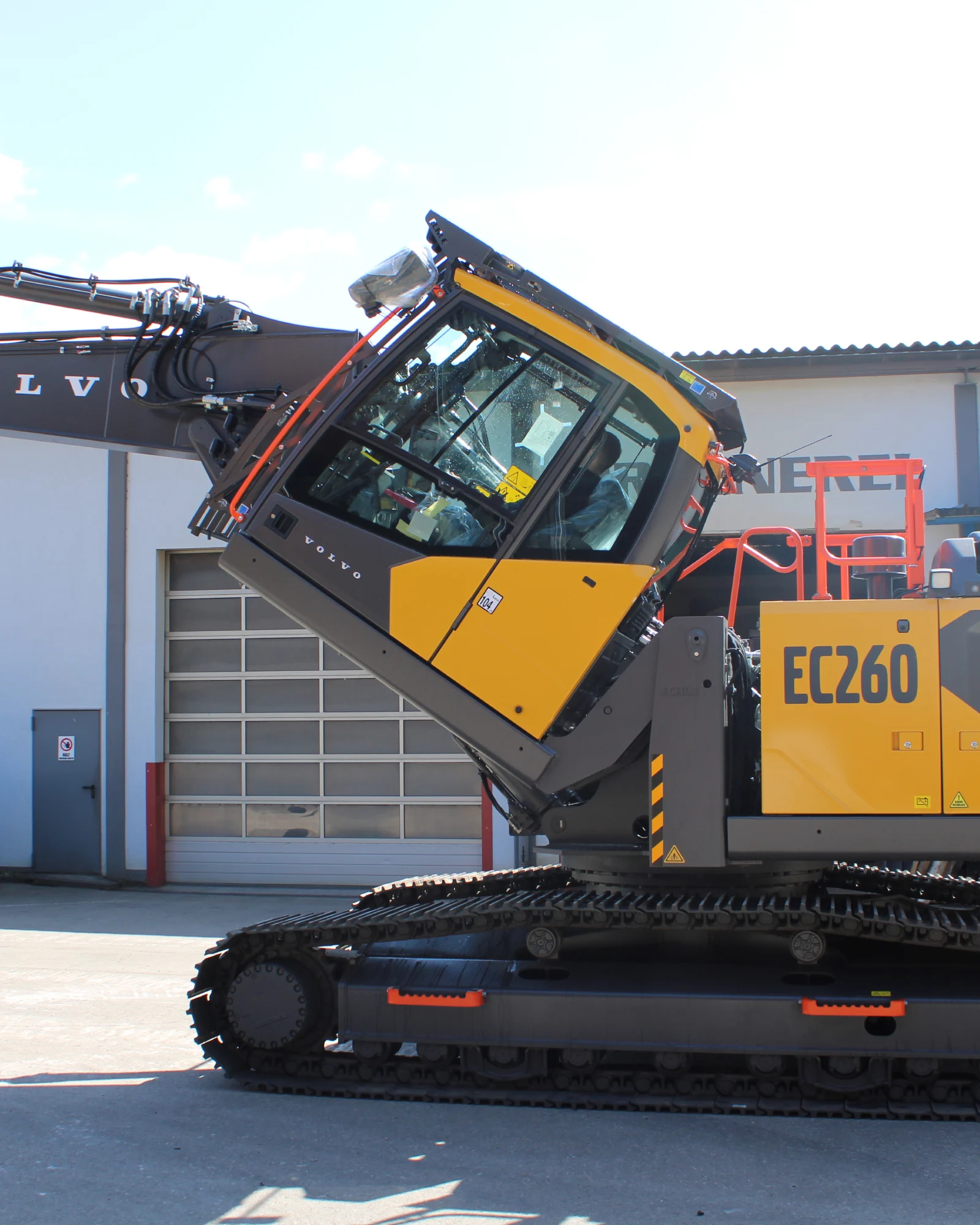

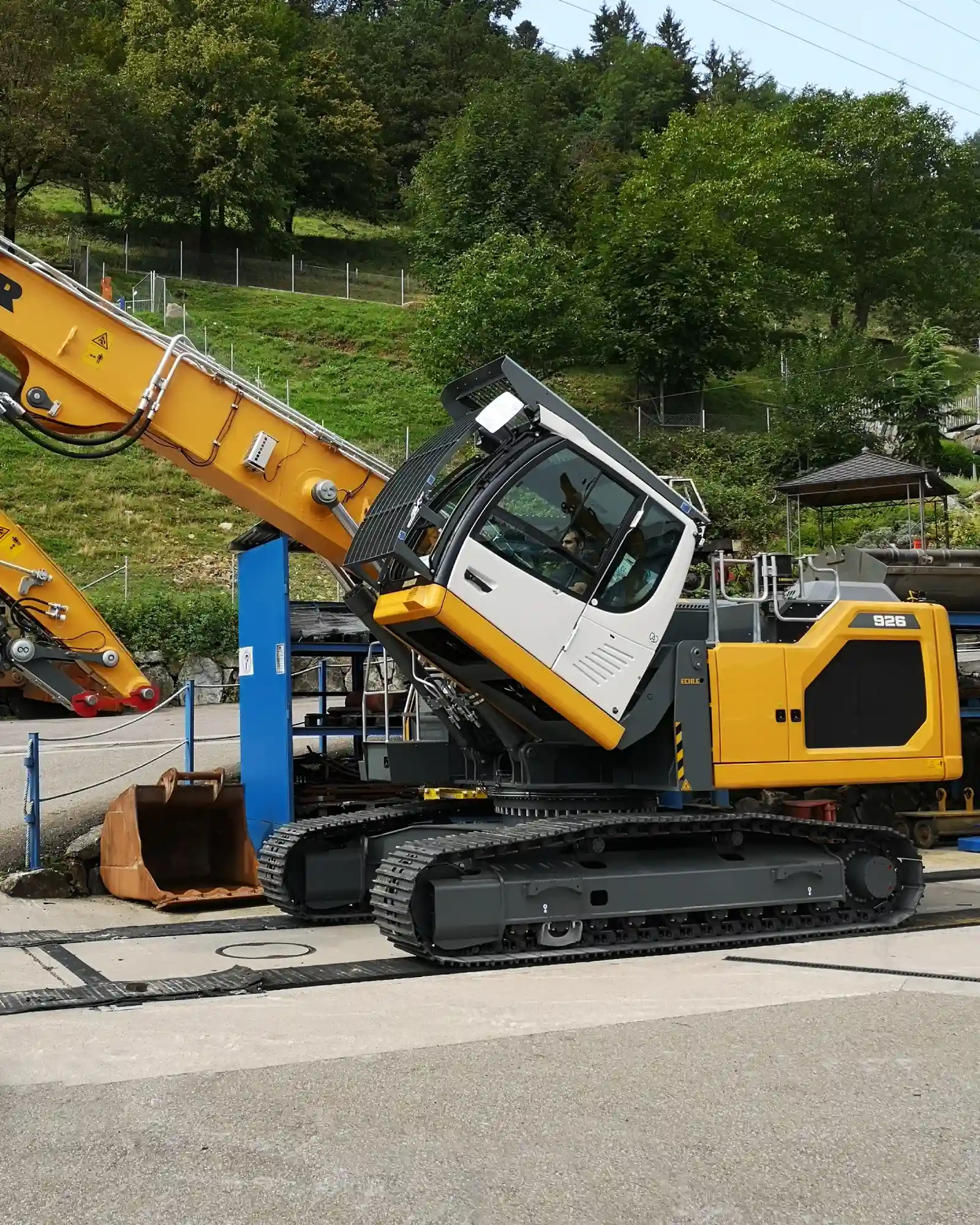

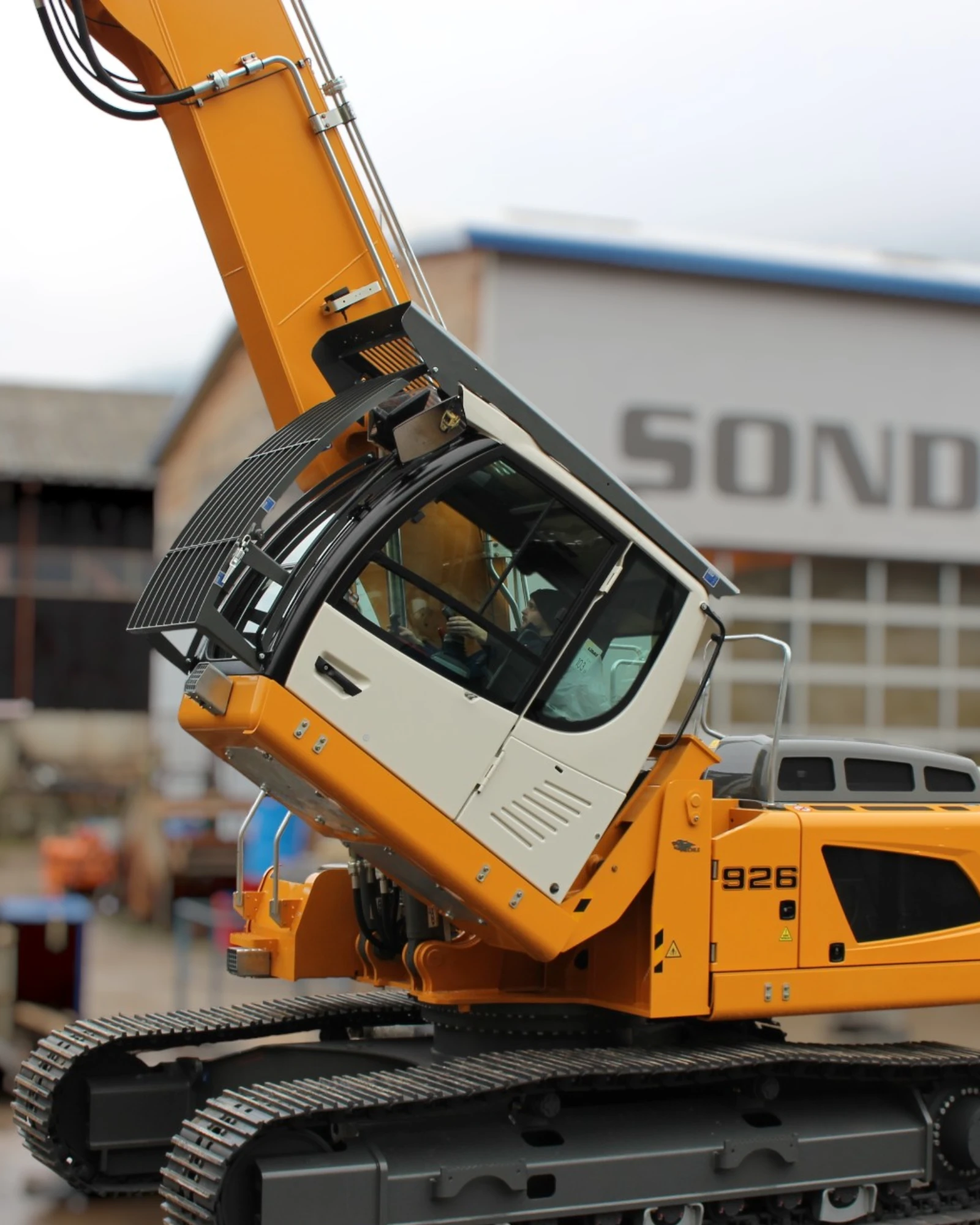

  The tilt cab ensures an ergonomic and comfortable seating position, making work significantly more relaxed and less fatiguing.
• Stepless Tilting up to approx. 30°:
  Following the modification, the cab can be continuously tilted up to an angle of approx. 30°. This is driven by hydraulic cylinders equipped with a load-holding valve.
• Protected Cylinder Design:
  Thanks to its integrated construction, the hydraulic cylinder is optimally protected against external impacts.
• Highly compatible with our “PROTECTOR E4” guard.
• Optimized Cab Positioning:
  Due to the modification, the cab is shifted forward by approx. 350 mm, significantly improving the operator’s field of vision.
• Simple Control System:
  Operation is controlled via the medium-pressure circuit. No additional control elements are required.
• Integrated Emergency Lowering:
  For maximum safety, an emergency lowering system is integrated, which can be triggered from both inside the cab and from the ground.
• Line Adjustment:
  All relevant lines and hoses are adapted and extended: hydraulic hoses, A/C lines, and heating hoses.
• Corrosion Protection and High-Quality Finish:
  Upon completion of the work, the entire modification area is primed and painted to ensure long-lasting corrosion protection and a premium appearance.

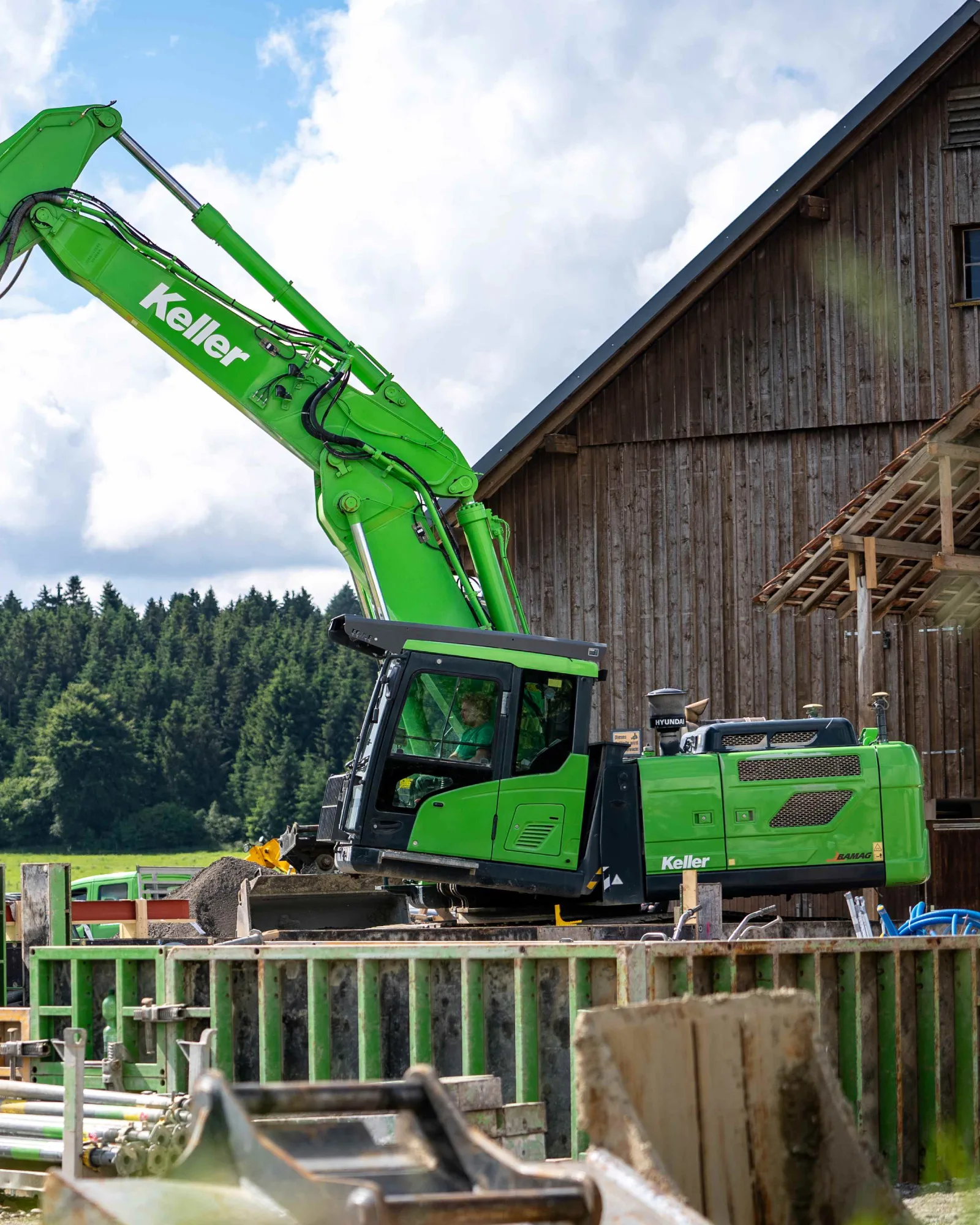

Decades of experience in action: Our tilt cab references

Discover the custom modifications we have successfully delivered for our customers:

Our tilt cabs in demonstration

Our videos show functional testing and the stepless tilting of the ECHLE tilt cab on various excavator models. See for yourself the precise tilting kinematics and how our systems operate.

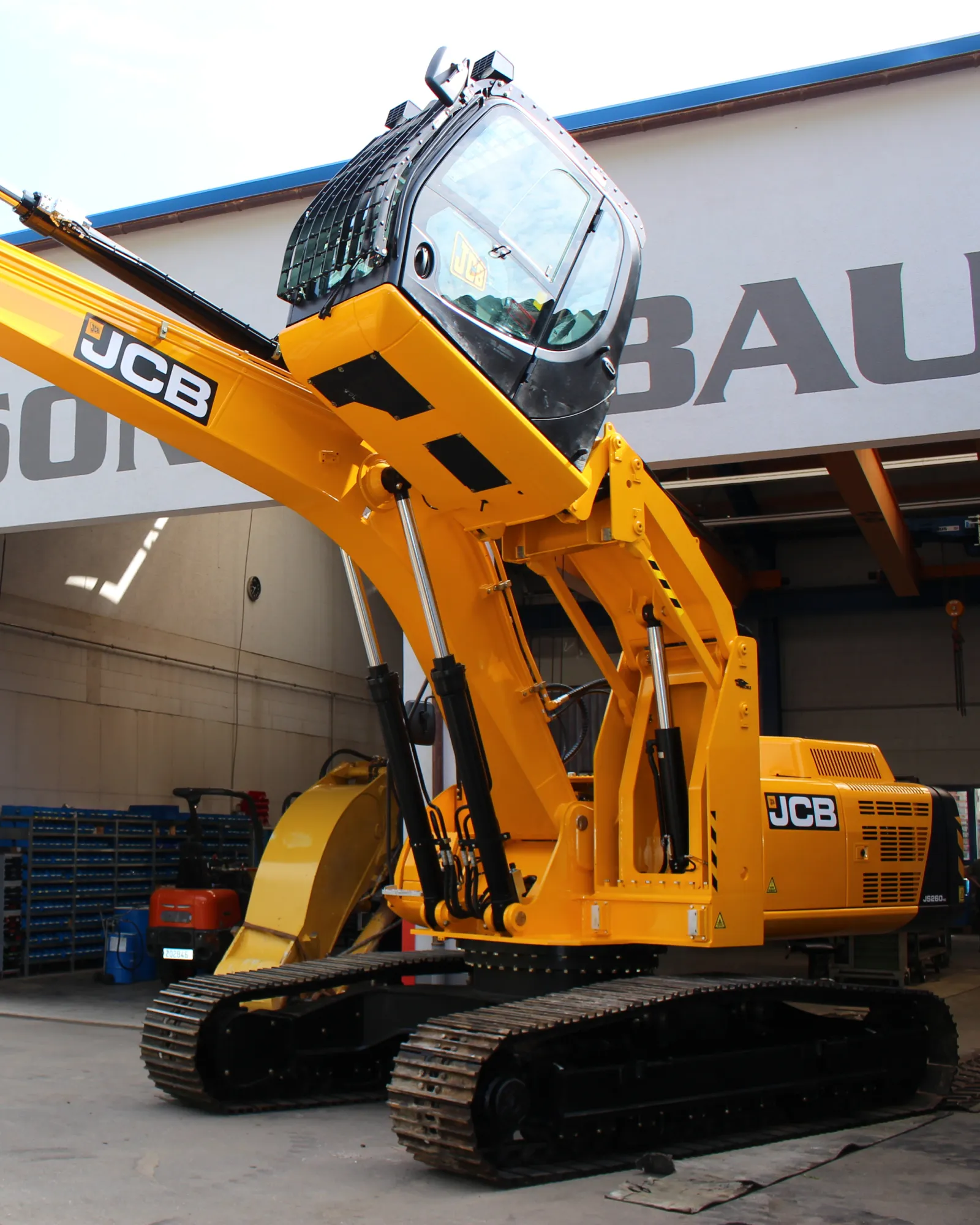

• Ergonomics and Comfort:

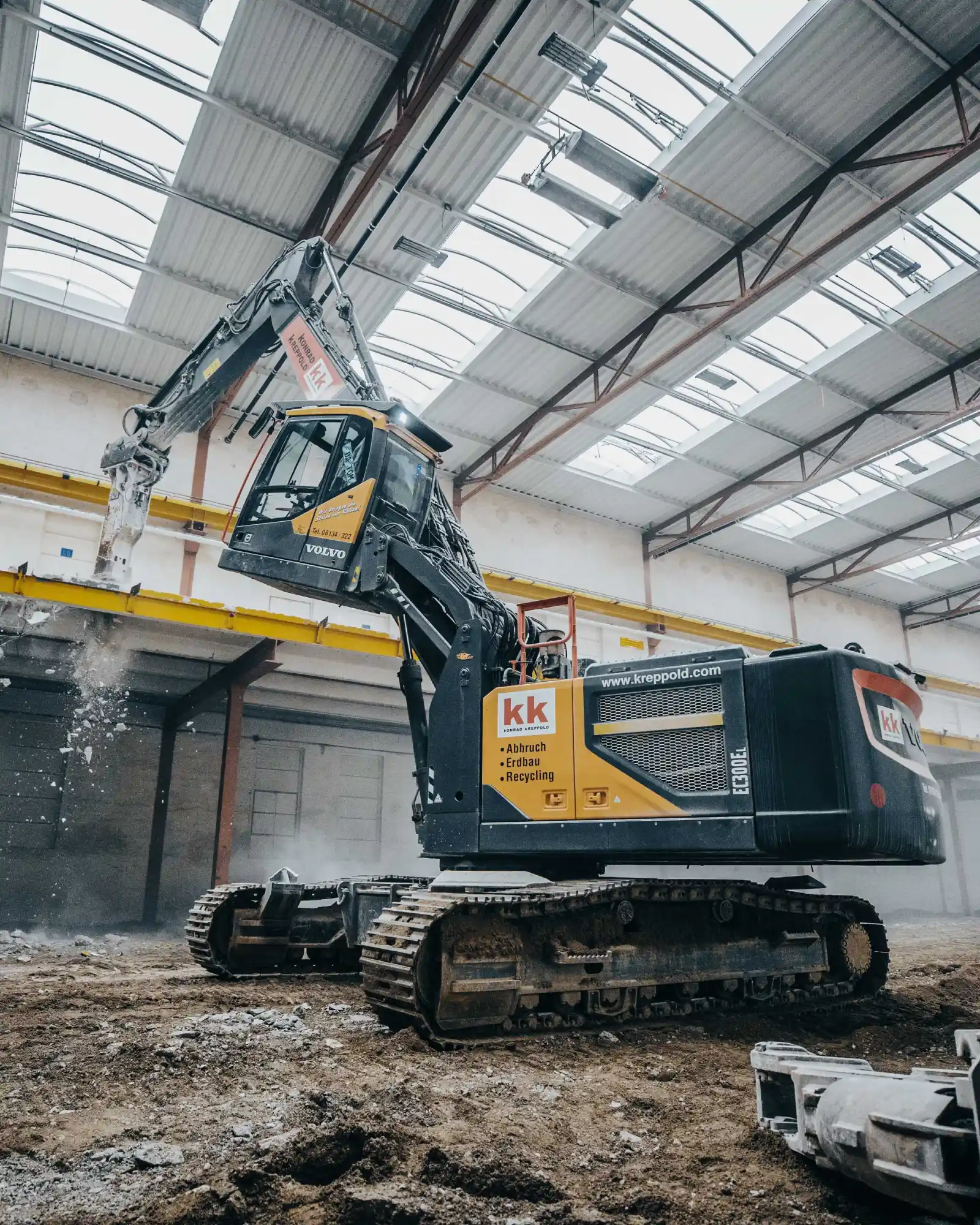

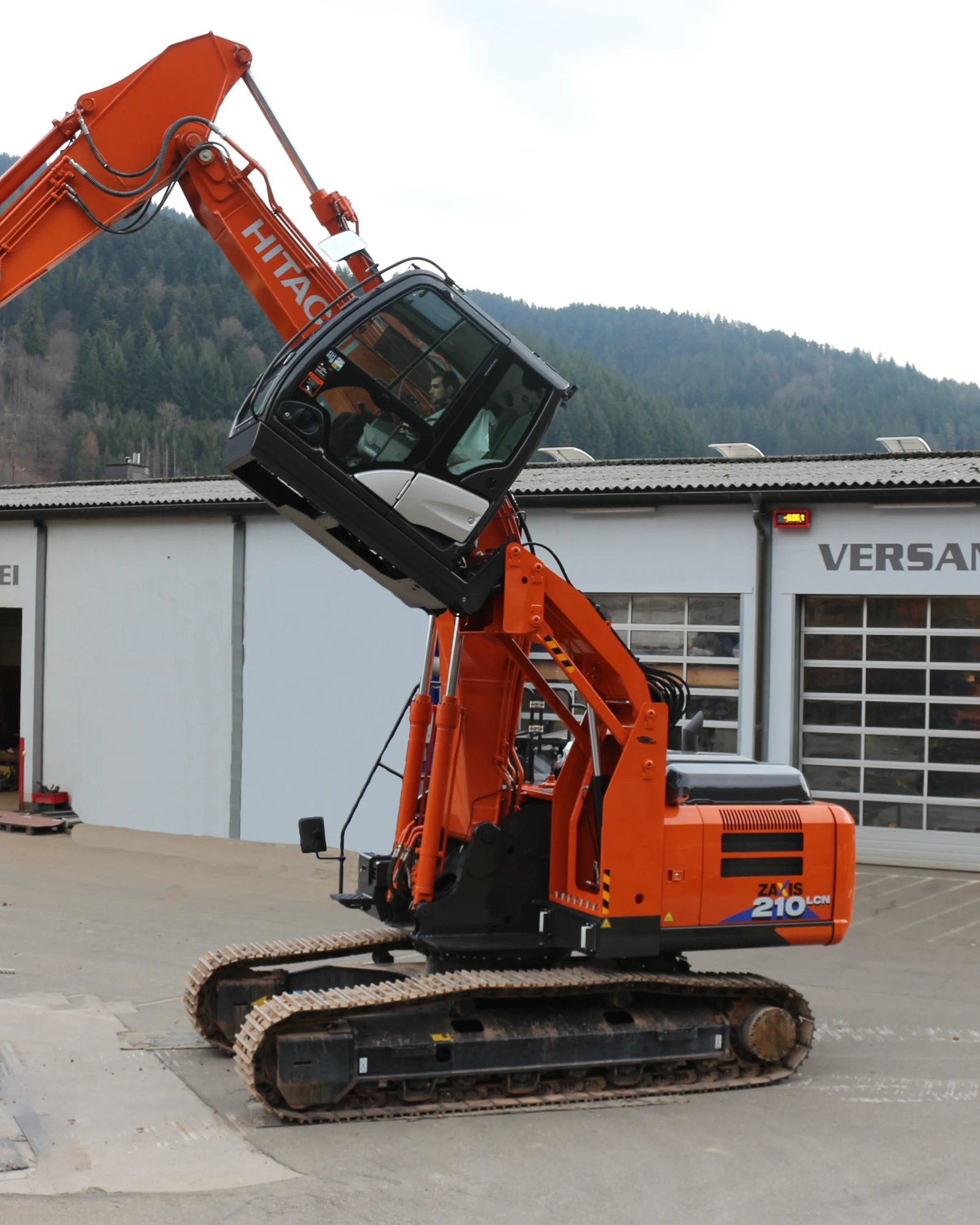

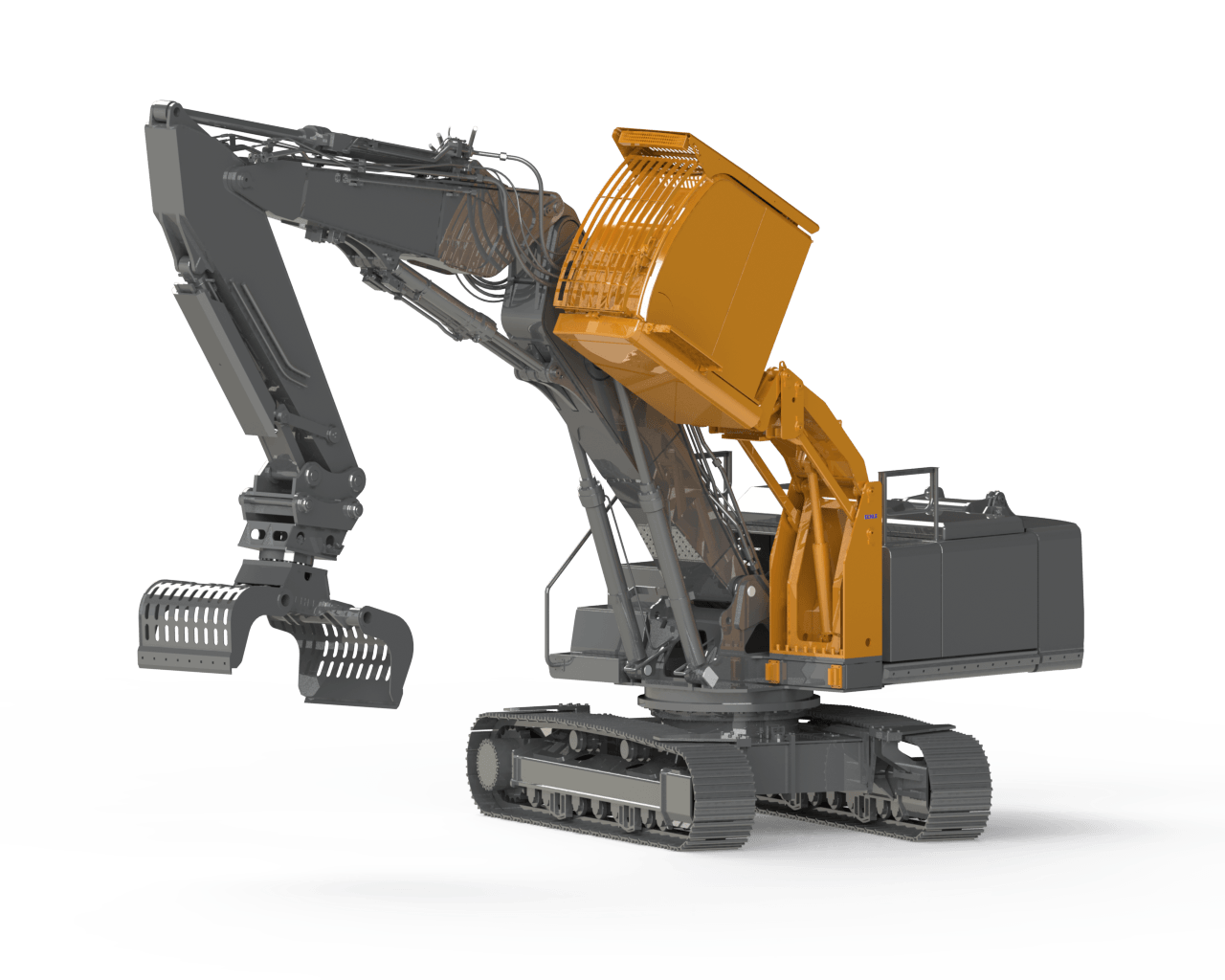

  The lift-tilt cab combines height adjustment with an ergonomic tilting function – for maximum comfort and reduced strain.
• Stepless Tilting up to approx. 30°:
  Following the modification, the cab can be continuously tilted up to an angle of approx. 30°. This is driven by hydraulic cylinders equipped with a load-holding valve.
• Optimized Cab Positioning:
  Due to the modification, the cab is shifted forward by approx. 700 mm, significantly improving visibility.
• Highly compatible with our “PROTECTOR E4” guard.
• Simple Control System:
  Operation is controlled via the medium-pressure circuit. No additional control elements are required.
• Lift Height approx. 2,300 mm:
  The cab is raised via a hydraulic cylinder using a lift frame, which is connected to the excavator chassis via parallel kinematics.
• All relevant lines and hoses are adapted and extended.
• Integrated Emergency Lowering:
  For maximum safety, an emergency lowering system is integrated, which can be triggered from both inside the cab and from the ground.
• Corrosion Protection and High-Quality Finish:
  All components are blasted, primed, and painted.

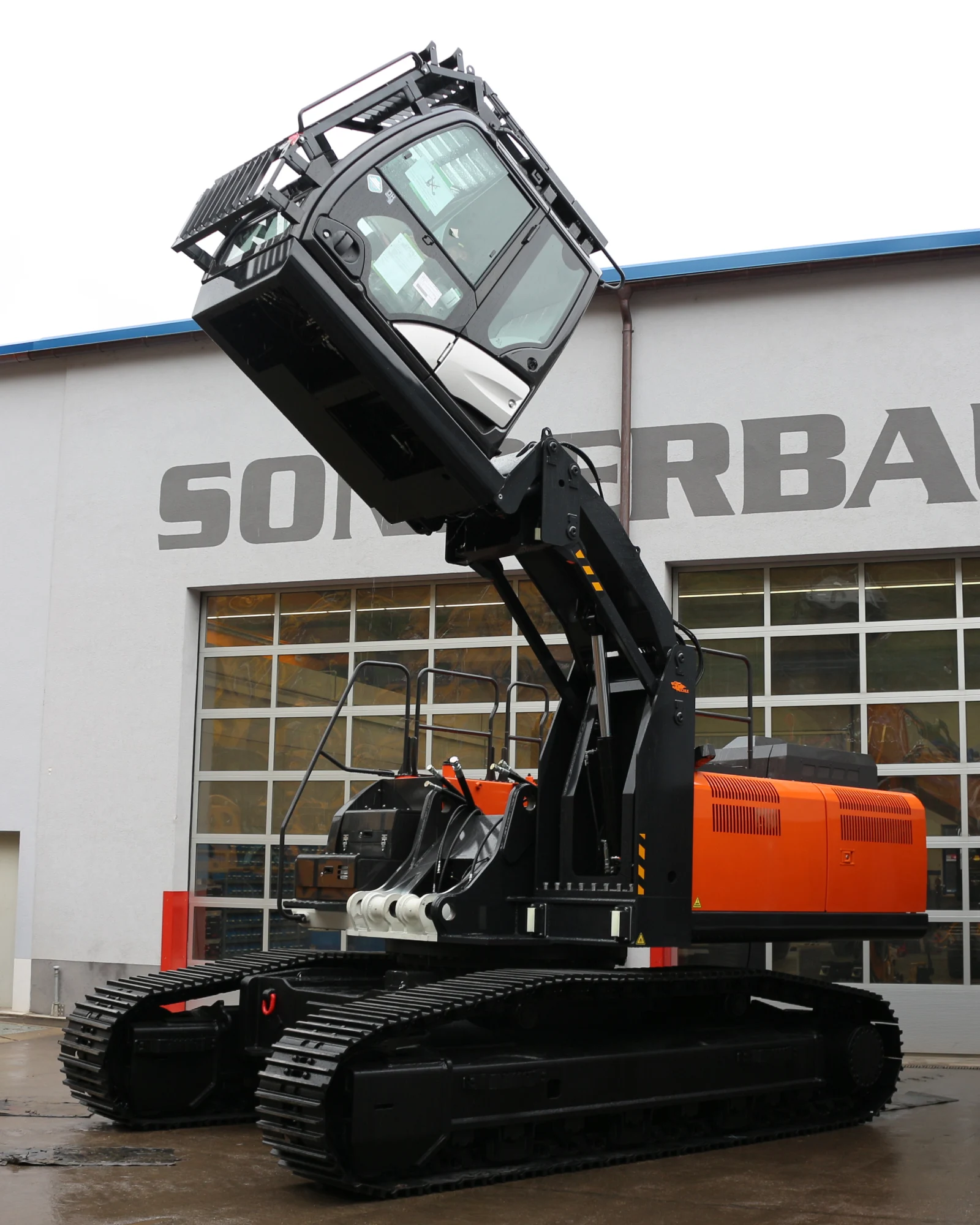

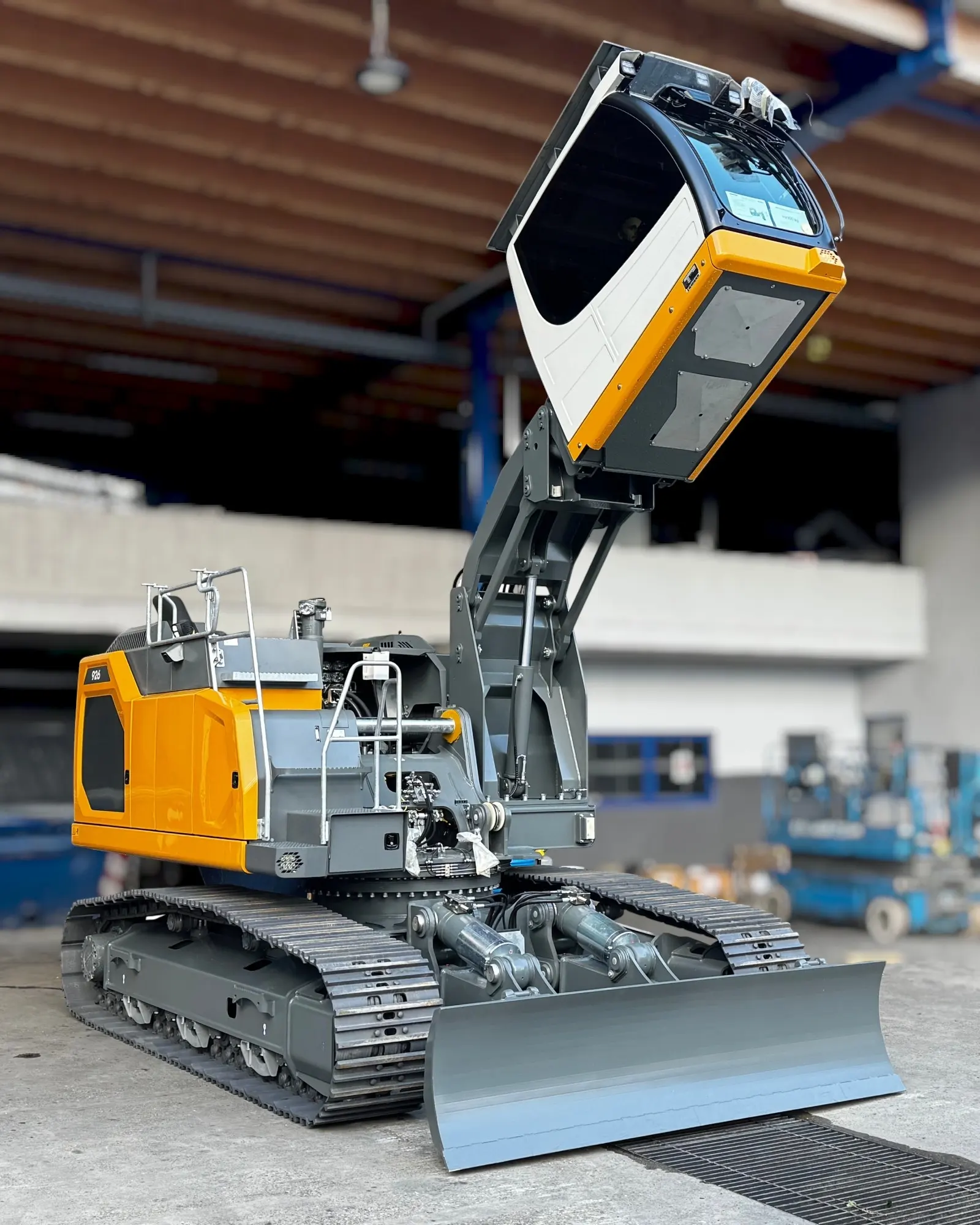

Our lift-tilt cab references

Discover the lift-tilt cabs we have successfully delivered for our customers:

Our lift-tilt cabs in demonstration

Experience our ECHLE lift-tilt cab in action: The videos show functional testing and the stepless raising and tilting on various excavator models. See for yourself the precise kinematics and high performance of our lift-tilt systems.
